ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 64 -
System Configuration Interface
M07 M07 instruction: Default
M08 M08 instruction: Default
Model: Flame
System: Metric
Language: Chinese
Return / Configure / Adjust height / Advance / Flame / Save / Return

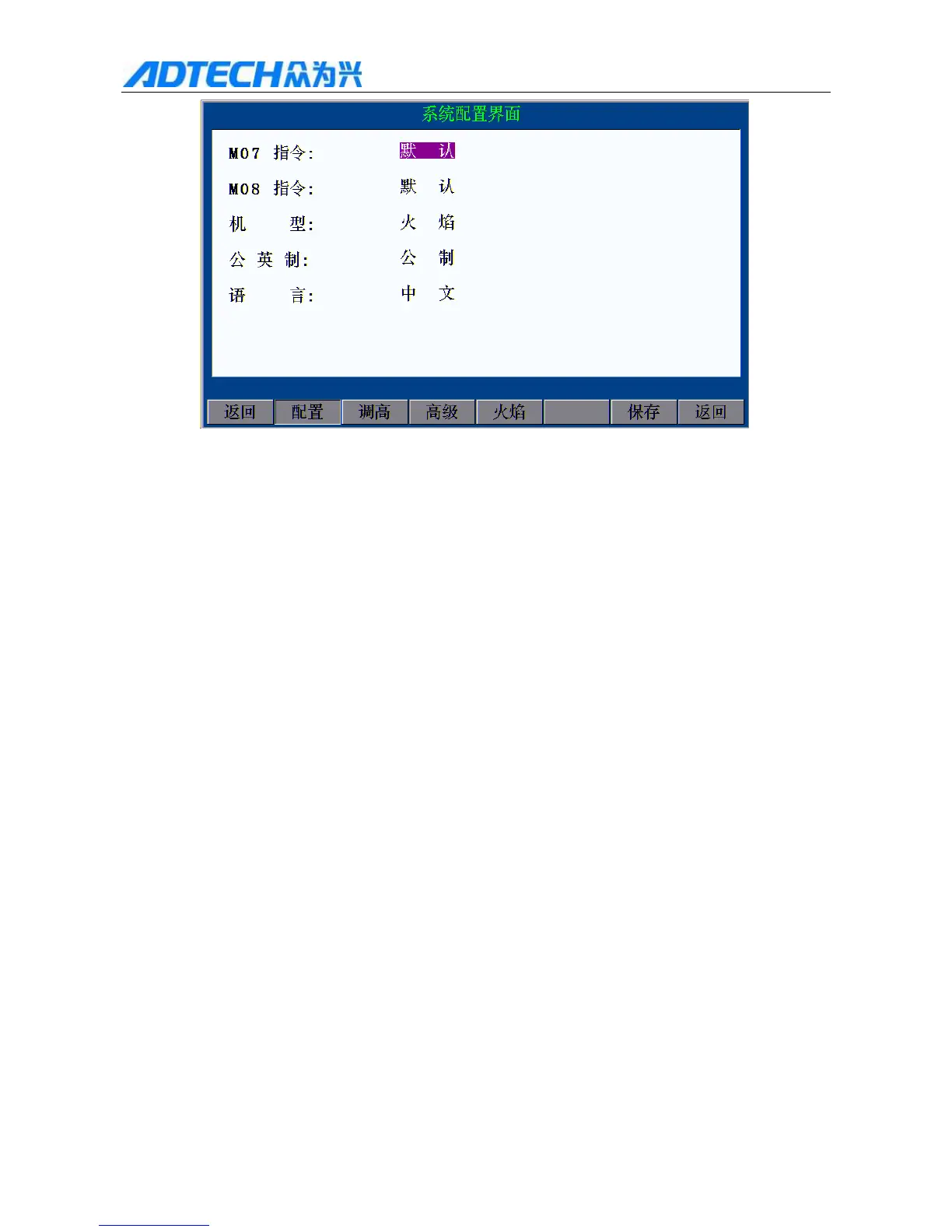

Fig. 4.1 Configuration Interface
M07, M08 instruction: The user can select Default or Custom for M07, M08 preheating perforating
instruction. Please refer to section 3 “Definition”.
Language: Select language from available options.
Model: Two cutting processes are available, i.e. flame and plasma.
System: This instruction only allows switching metric and imperial system before entering auto mode or
checking program.
Operating mode: Press [Y+], [Y-] to move cursor up/down, press [X+], [X-] to change the mode, and press
[F6] to save the parameters.
4.1.1 Height adjustment
In above system parameter setting interface, press [F2] to enter height adjustment interface:
