ADT-HC4500 Flame/Plasma Cutting Machine CNC System
- 65 -

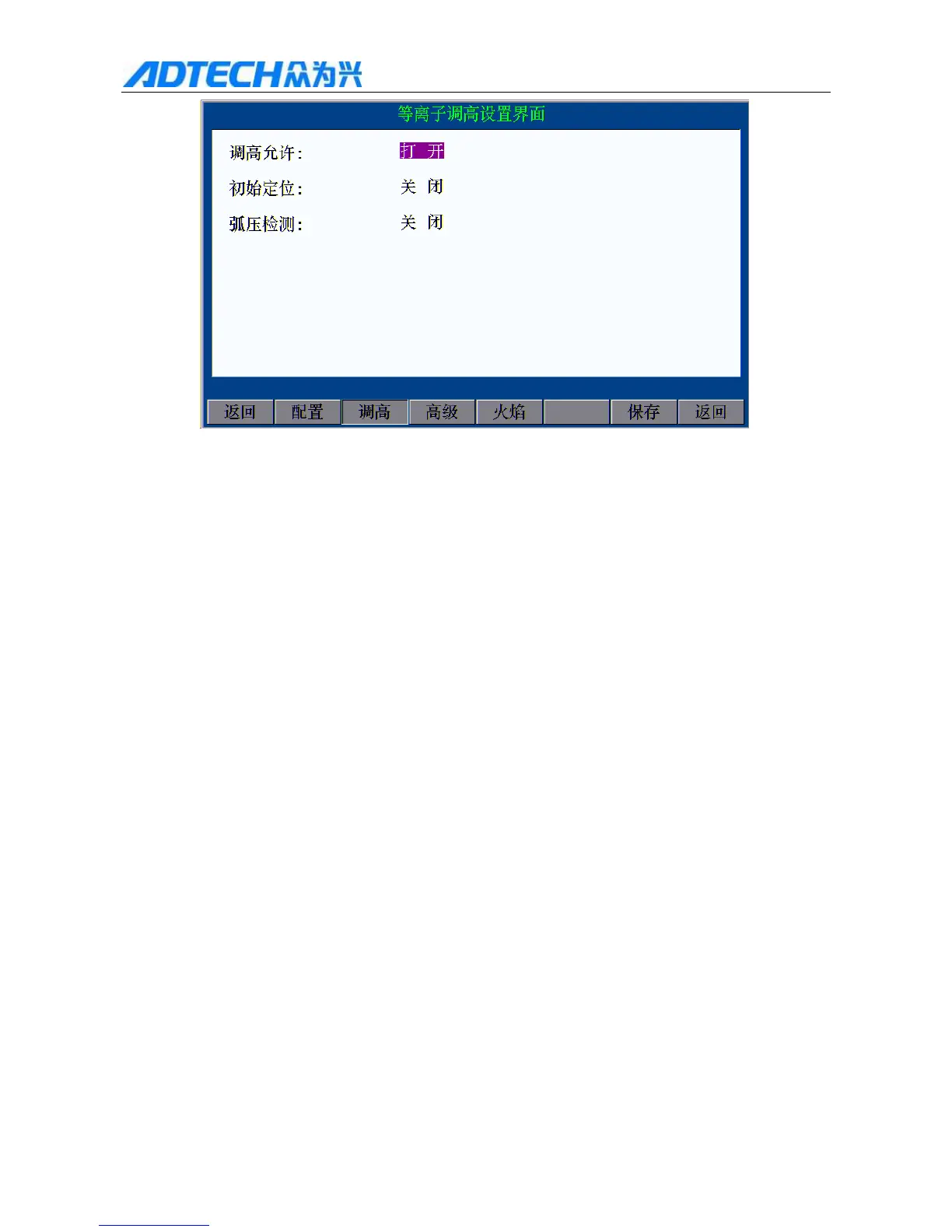

Plasma Height Adjustment Interface
Allow height adjustment: On
Initial positioning: Off
Arc voltage test Off
Return / Configure / Adjust height / Advance / Flame / Save / Return
Fig. 4.1.1 Height Adjustment
Allow height adjustment: When the system is installed with arc voltage height adjustment device, this
controls when to turn on/off arc voltage height adjustment.
Initial positioning: The torch performs a fixed rising height after touching the steel plate.
Arc voltage test: The plasma power supply feeds back a signal for start arc. If it is successful, the system
executes running track; if not, it stops track running.
Operating mode: Press [Y+], [Y-] to move cursor up/down, press [X+], [X-] to change the mode, and then
press [F6] or [OK].
4.1.2 Flame step height adjustment
In parameter setting interface, press [F4] Flame to enter flame step height adjustment interface:
Press number keys to enter the parameter values, and press [Y+] [Y-] to select parameters.
To Next Page
