MX2800 STS-1 User Manual Introduction, Section 1
Available Options
61204659L1-1A 1-7
Battery Backup (P/N 4175043L2)
The battery backup system provides power backup in the event of power loss. This system includes the
battery, an AC battery charger, and an alarm cable.
Fan Faceplate (P/N 1200466L1)
The MX2800 Fan Faceplate provides the means for additional heat dissipation. This allows multiple units
to be stacked directly on top of each other. The fan faceplate replaces the original faceplate, and it is for use
with the 1202289L1, 1202289L2, and 1202289L3 power supplies. Figure 1-3 shows how the fan faceplate
is installed on the chassis.

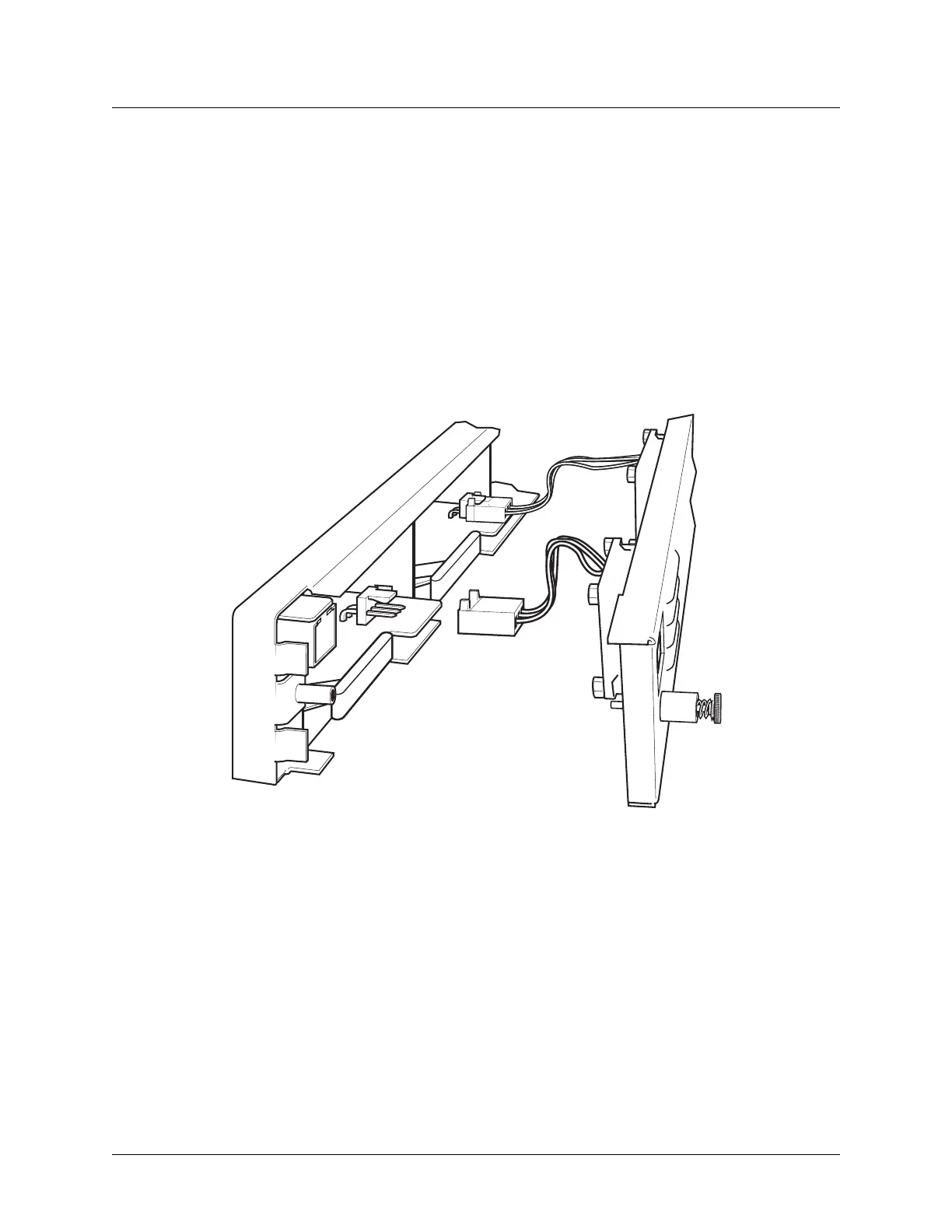

Figure 1-3. Fan Faceplate
