MX2800 STS-1 User Manual Statistics, Section 5
STS-1 Statistics
61204659L1-1A 5-3
The STS-1 Statistics menu is divided into two sections which provide the following information:
• Alarm History on page 5-3
• Performance Parameters on page 5-5
Alarm History
The MX2800 STS-1 keeps track of STS-1 alarms for both the near and far ends of the network. View alarm
history information in one of the three time period selections, or view a cumulative alarm count. Informa-
tion in these fields is for the given time period since the last reset. The cumulative alarm count continues
indefinitely until Clear All STS-1 Alarm Counts is selected. Figure 5-4 and Figure 5-5 show examples of
alarm screens.

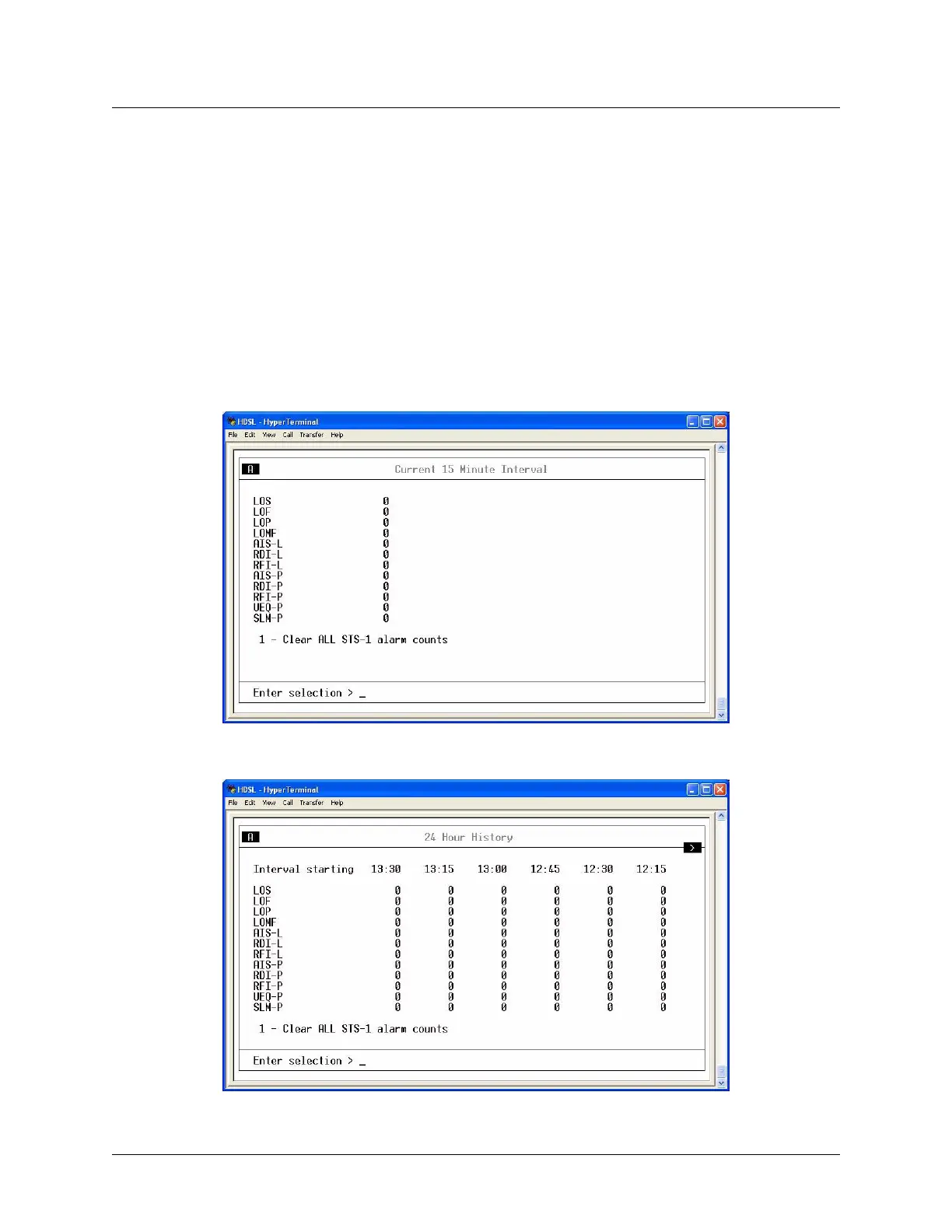

Figure 5-4. Local STS-1 Current Alarm Count Screen
Figure 5-5. Local STS-1 24-Hour Alarm History Screen
