2-8 61204659L1-1A
Section 2, Installation and Operation MX2800 STS-1 User Manual
Front Panel
DSX-1/E1 Interfaces
The DSX-1/E1 interfaces are 64-pin amphenol connectors. These interfaces provide Tx and Rx connec-
tions between the unit and equipment such as wire-wrap patch panels, punch-down panels, or breakout
panels.
NOTE
Connect the DSX-1/E1 interfaces to intra-building wiring only.
Power Connection
The DC and AC power connections are described in Power Up on page 2-2.
External BITS Clock
The external BITS clock connections are made through wire-wrap pins. It is possible to connect two exter-
nal BITS clocks in this manner. This allows either one or two external BITS clocks to be used for unit
timing. Each BITS clock terminates on three wire-wrap posts. The posts are tip, ring, and shield and are
labeled
T, R, and S for clock A and clock B.
7. FRONT PANEL

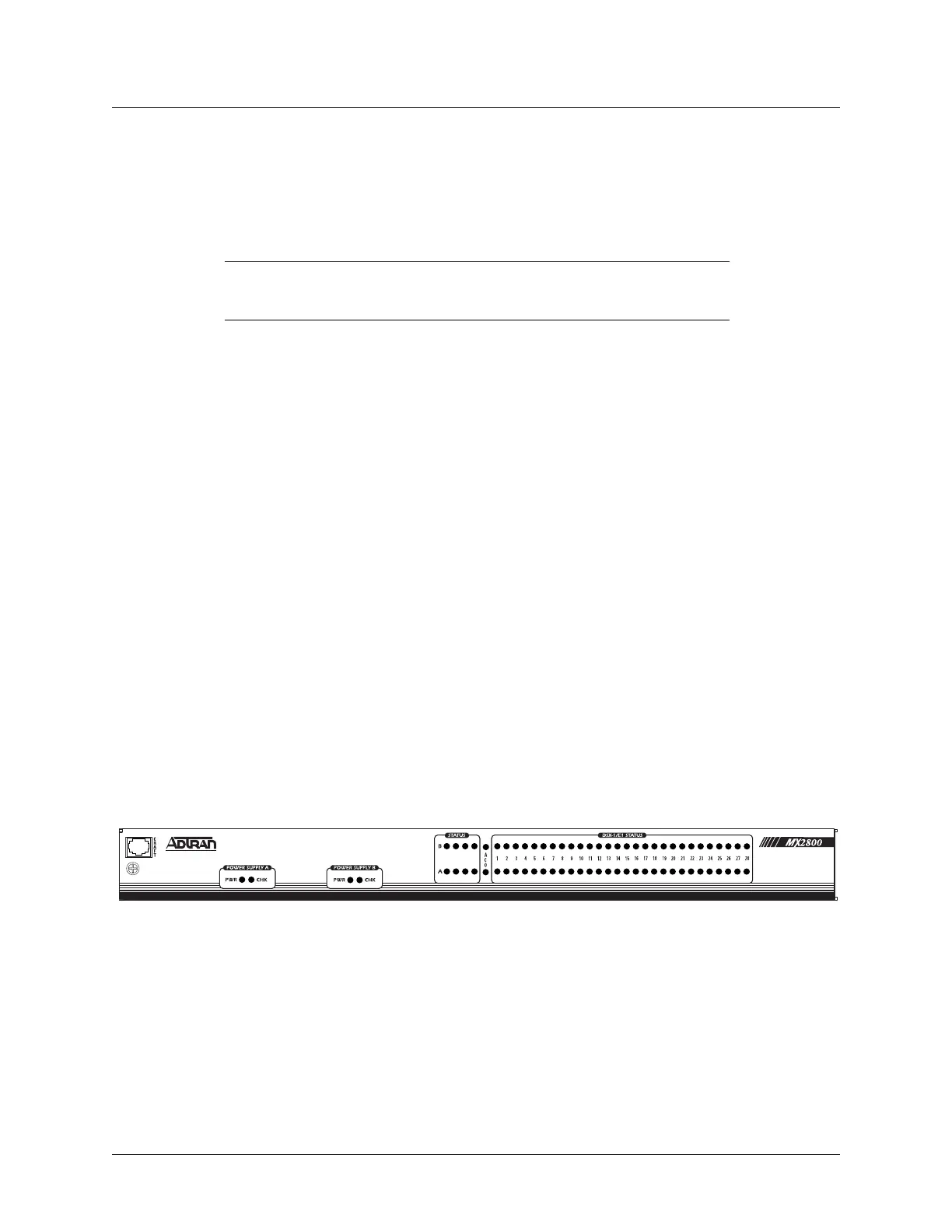

The MX2800 STS-1 faceplate is shown below in Figure 2-4. Descriptions of each part of the front panel
follow.
• Craft Port on page 2-8
• ACO Buttons on page 2-13
• LED Descriptions on page 2-13
Figure 2-4. MX2800 STS-1 Front Panel
Craft Port
The CRAFT port, an 8-pin modular jack, provides connection to a VT100 EIA-232 compatible interface
using the supplied 8-pin modular to DB-9 female connector and the 8-pin to 8-pin modular cable.
A
T
C
T
E
N
M
L
A
F
R
P
