MX2800 STS-1 User Manual Statistics, Section 5
STS-1 Statistics
61204659L1-1A 5-5
Performance Parameters
View performance parameter information for the network in one of the three time period selections. Infor-
mation in these fields is for the given time period since the last reset. When viewing the 24-hour history
statistics screen, use the left and right arrow keys to scroll through all 96 15-minute intervals. See
Figure 5-6, Figure 5-7, and Figure 5-8 for examples of the performance parameter screens.
Descriptions of the fields follow the screen illustrations.

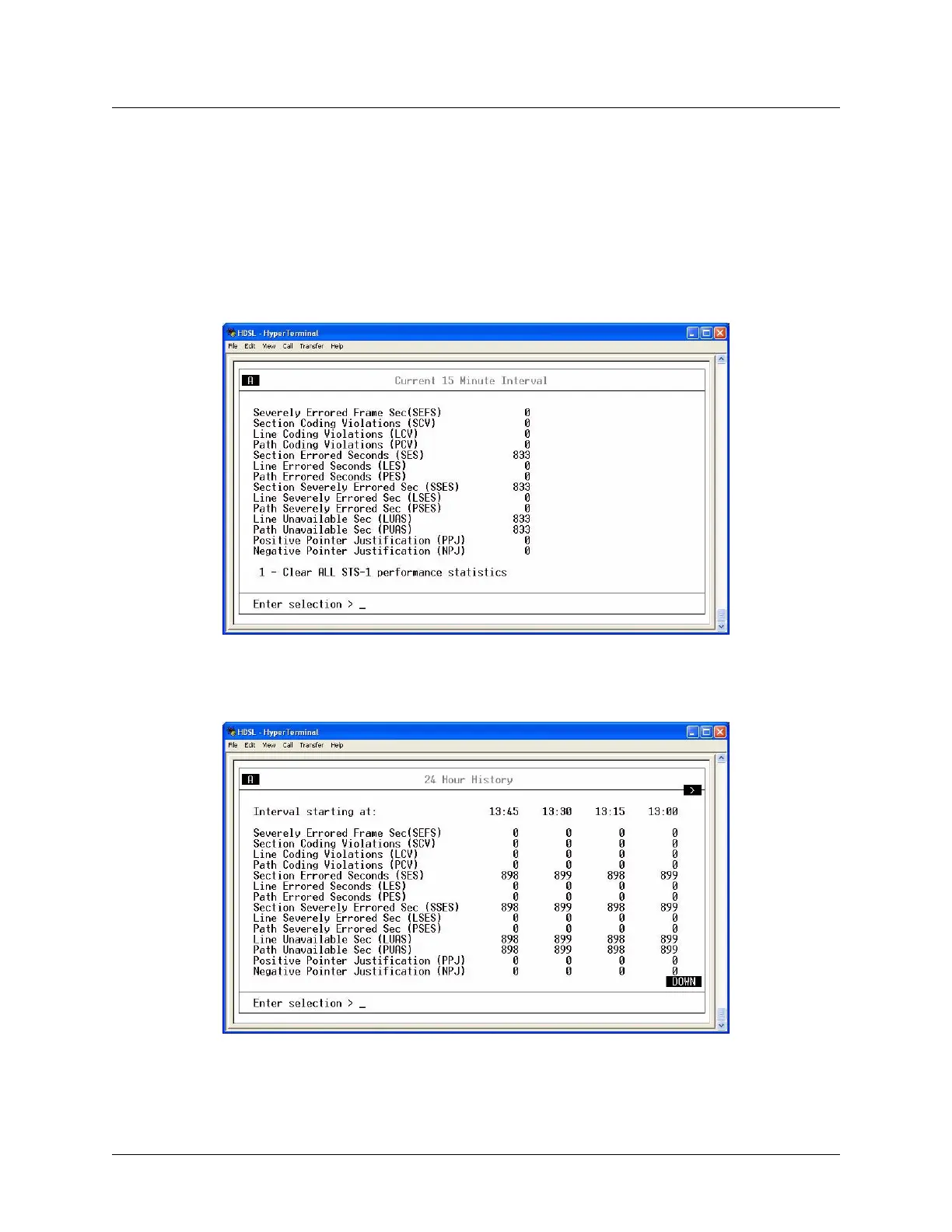

Figure 5-6. Local STS-1 Performance Parameters (Current 15 Minutes)
Figure 5-7. Local STS-1 Performance Parameters (24 Hour History)
