SECTION 4, STATUS
Section 4
Status
View MX2800 STS-1 status information by selecting Status from the Main Menu. The Status screen is
illustrated in Figure 4-1.
The Status screen provides information in the following areas:
• STS-1 State on page 4-2
• Power Supply State on page 4-4
• System State on page 4-4
• VT/Port State on page 4-6
• Timing Status on page 4-7
• Acknowledge Alarms (ACO) on page 4-8

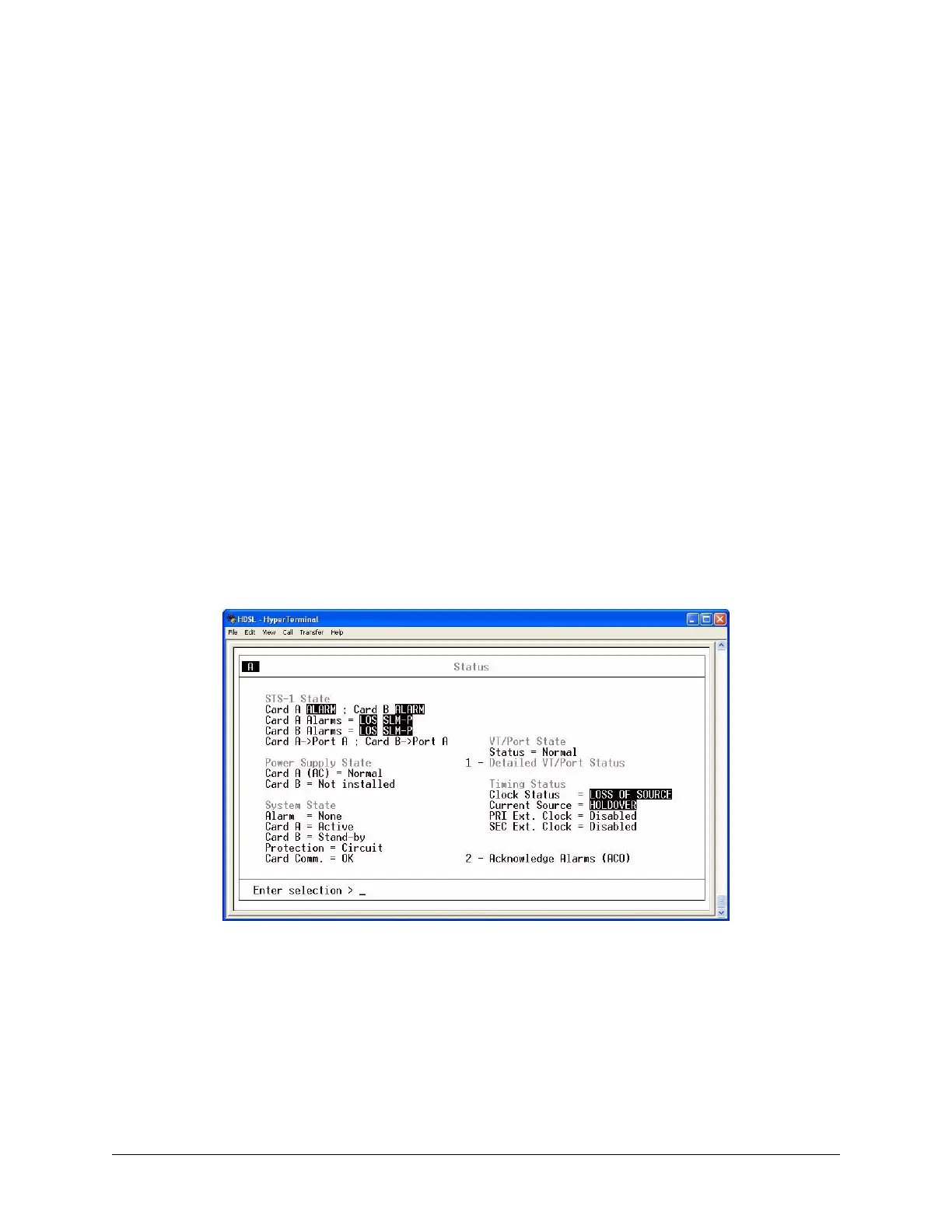

Figure 4-1. Status Menu
