MX2800 STS-1 User Manual Installation and Operation, Section 2
Front Panel
61204659L1-1A 2-11
The MX2800 STS-1 Main Menu consists of the following options:
Status
This screen provides information on the current state of the STS-1, power supplies, system, and VT/Port
lines. For more detailed information, refer to Section 4, Status.

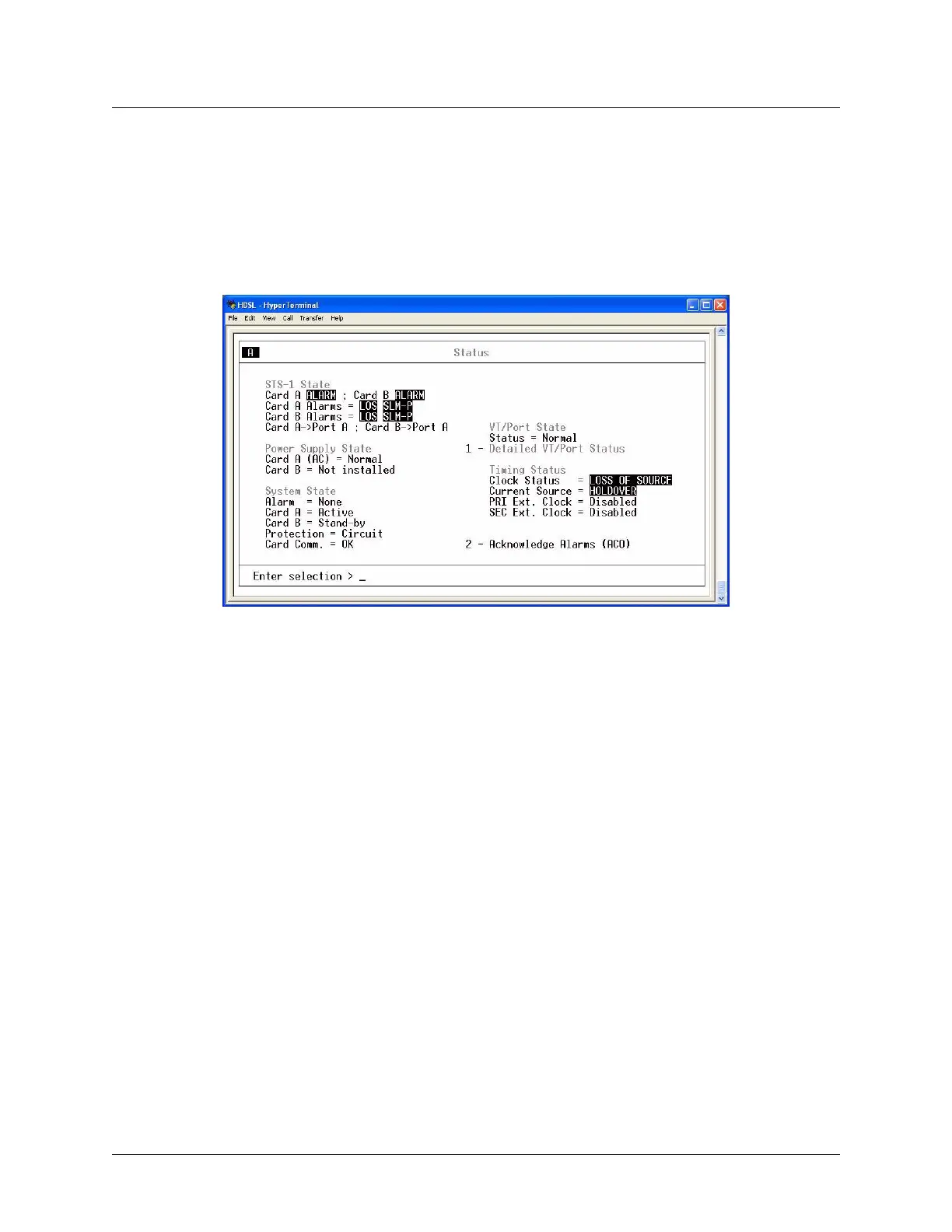

Figure 2-6. Status Screen
Statistics
This screen provides detailed statistical information (both current and historical) for the STS-1, VT, and
Port lines. For more detailed information, refer to Section 5, Statistics.
