MX2800 STS-1 User Manual Configuration, Section 3

VT Interface

61204659L1-1A 3-13

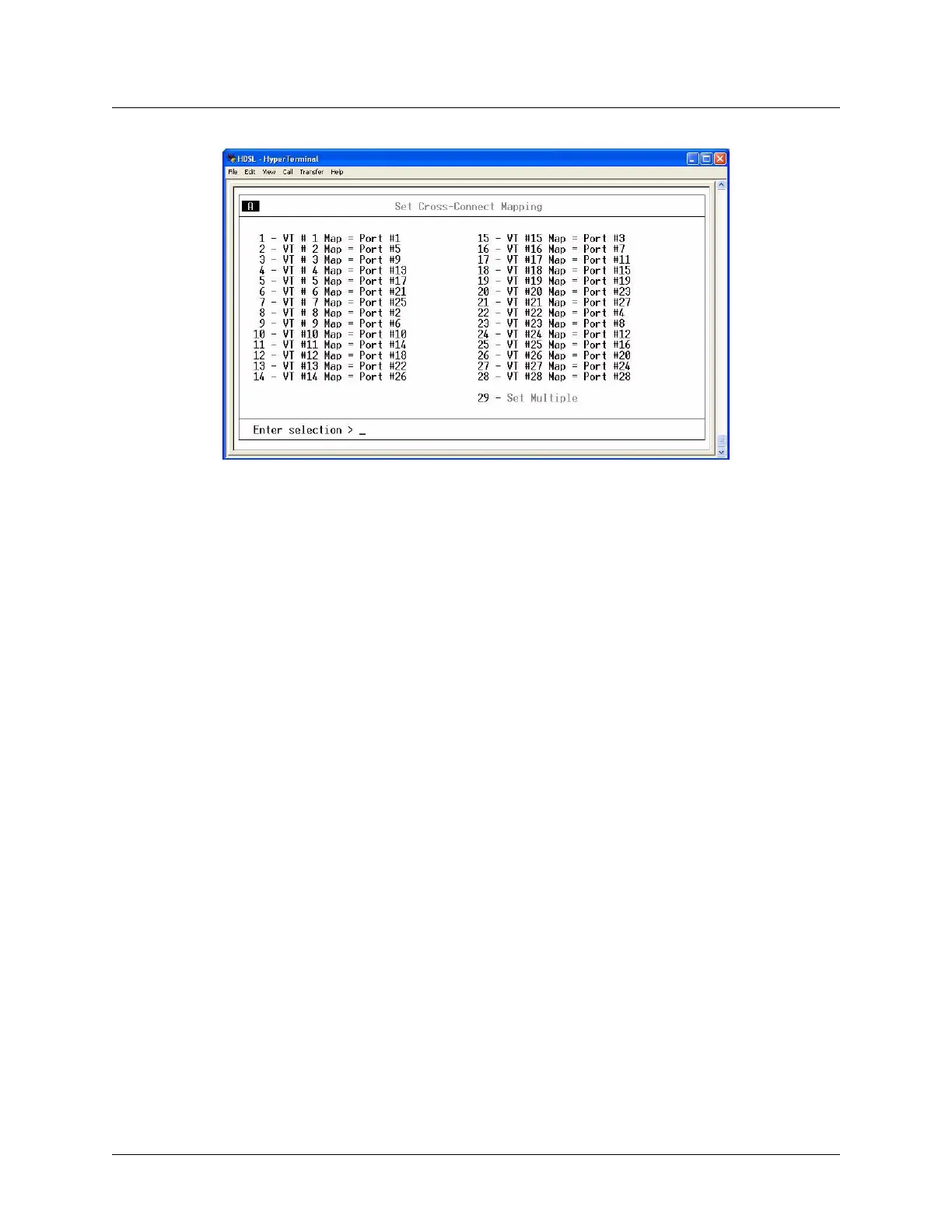

Figure 3-9. Set Cross-Connect Mapping Menu

As shown in Figure 3-9, VT #1 is mapped to Port #1, while VT #2 is mapped to Port #5. This indicates a

group mapped mode, as described in the next subsection.

The following tables illustrate the association of the VT ports and physical DS1 ports both sequen-

tially-mapped and group-mapped.
