Section 2, Installation and Operation MX2800 STS-1 User Manual
Front Panel

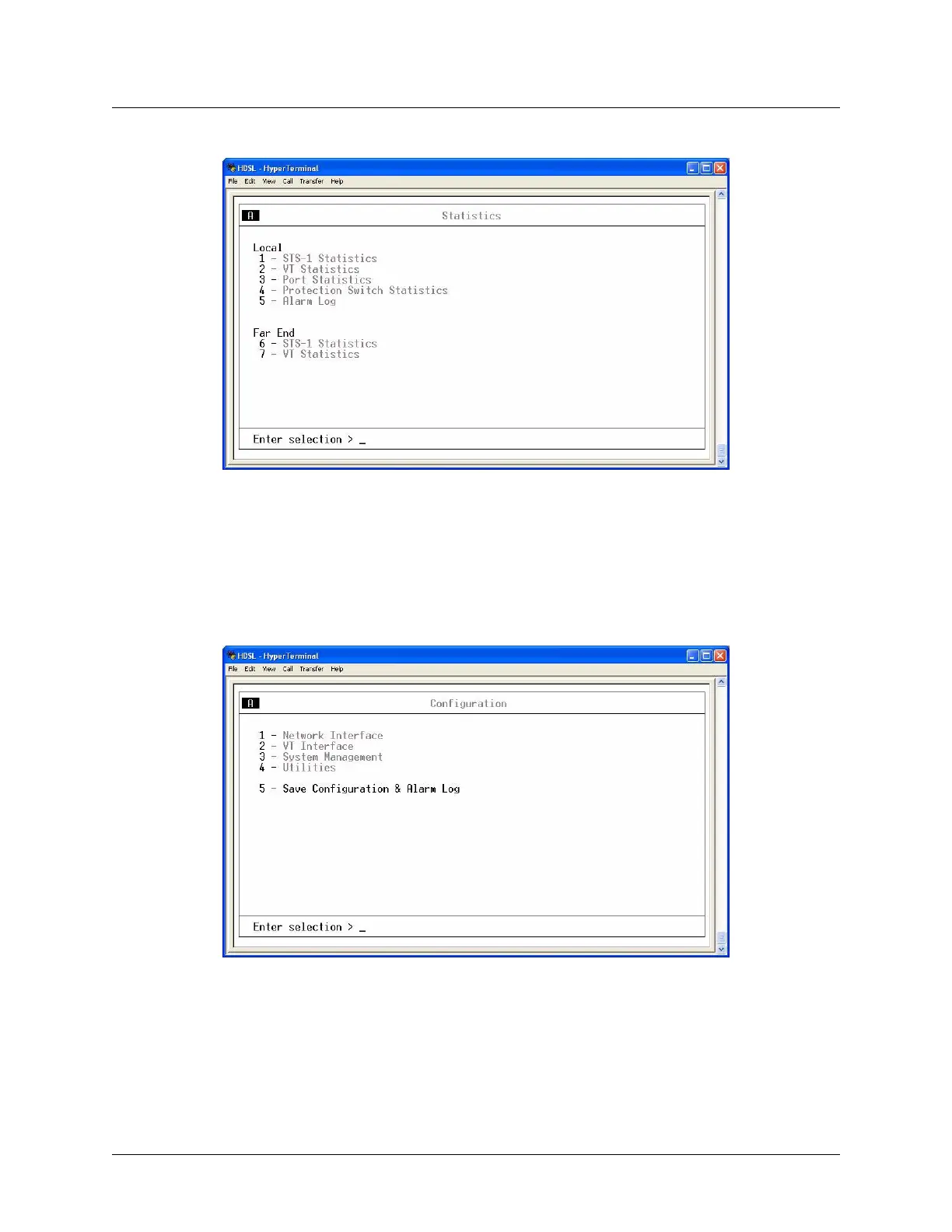

Figure 2-7. Statistics Menu
Configuration
Sets STS-1 network, VT/Port, and system management parameters. For more detailed information, refer to
Section 3, Configuration.
Figure 2-8. Configuration Menu
Loopbacks
This option accesses loopback tests for the STS-1 and VT/Port circuits. For more detailed information,
refer to Section 6, Loopbacks.
