7.16 Changing the Engine Oil and Filter
86
Operator’s Manual | SM100 | 5100064108 | 08/2022 | [en-US]
When
• After the first 50 hours
• Every 250 hours
Requirements
• Machine parked on a flat, level surface
• Machine shut down
• Replacement genuine YANMAR oil filter
• Container of sufficient volume to collect drained fluid
• Recommended oil (for oil specifications, see Engine Oil Viscosity on
page 74 and see Fluids on page 110)
• Filter wrench

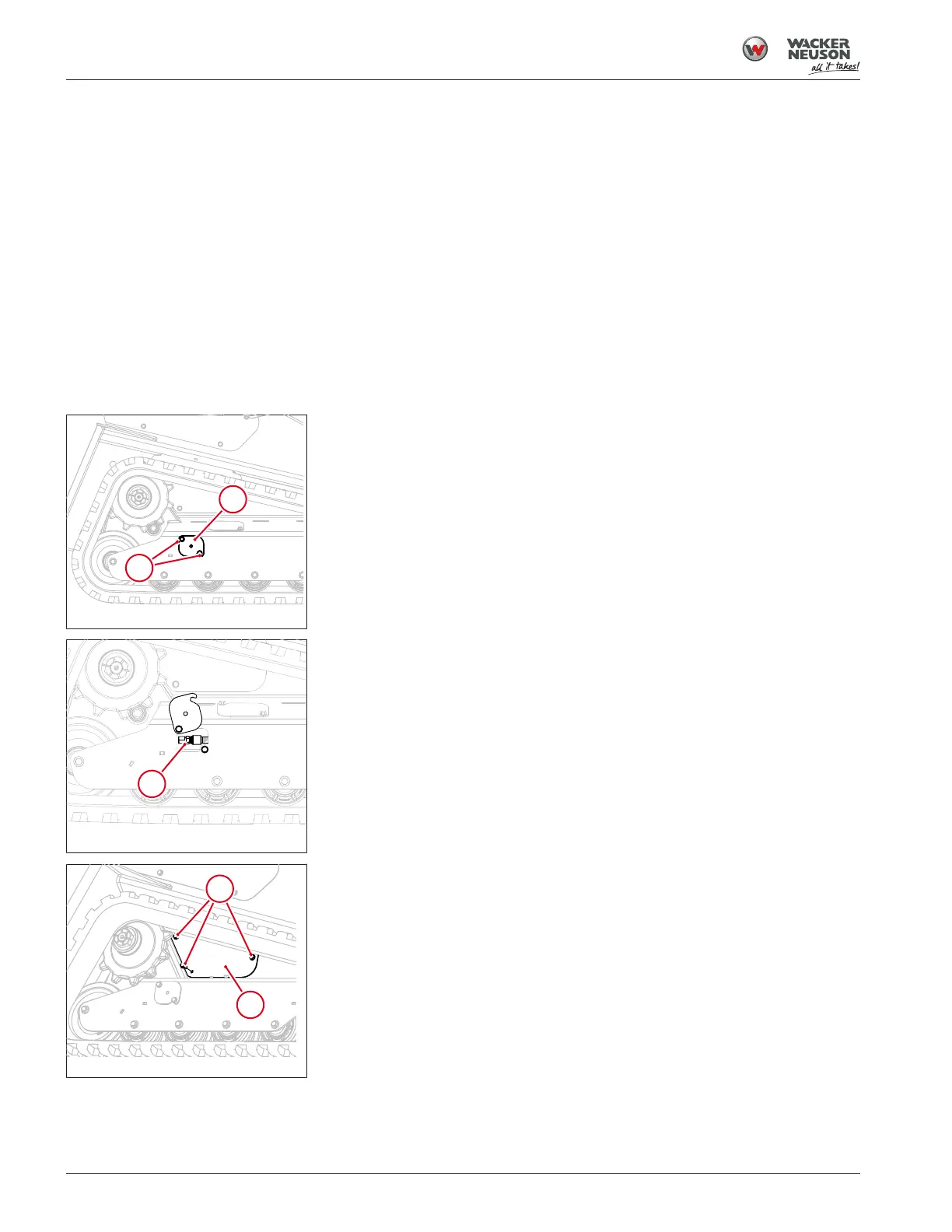

Fig.68: Bolts and access cover
Procedure
1. Loosen the two bolts (1) securing the access cover (2) on the right side
of the machine.
2. Swivel the access cover out of the way and tighten the top left bolt if
necessary to hold it in place.
Fig.69: Oil drain hose
3. Pull the oil drain hose (3) out from the access hole.
4. Drain the oil into a suitable container by removing the cap from the oil
drain hose.
Fig.70: Bolts and cover plate
5. Remove the three bolts (4) securing the cover plate (5).
6. Place a suitable container under the oil filter to catch used oil.
To Next Page
