Saving Results
1
2
4
5
7
6
3
3
3
3
3

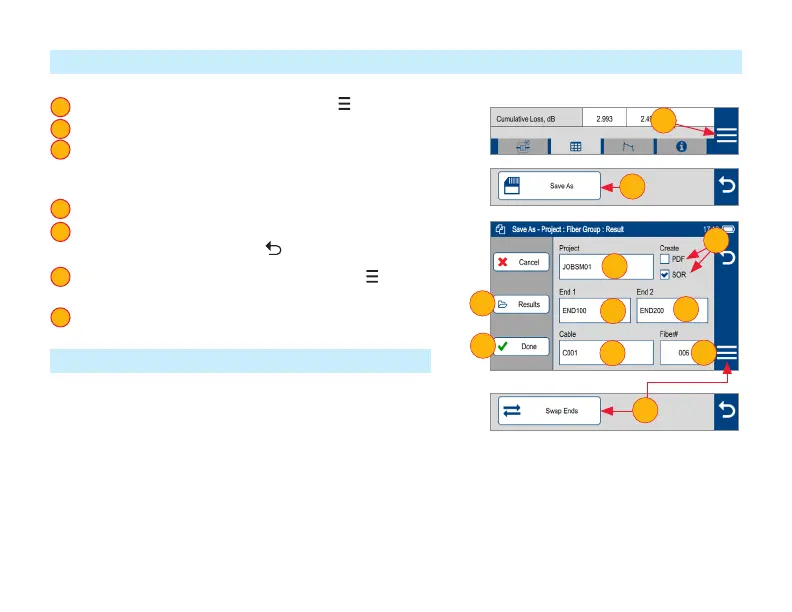

1 While in the Results view, touch Menu icon .
2 Touch ‘Save As’.
3 Edit [Project], [End1], [End2], [Cable] and [Fiber#] names used
to identify saved results: touch any eld to edit it. Touch Done
when nished.
4 Select if results are to be saved in SOR and/or PDF le format.
5 Touch Results to view, navigate and select destination Project/
Fiber Group folder. Touch Back to return to Save As screen.
6 If needed for bi-directional testing: Touch Menu ; then touch
Swap Ends.
7 Touch Done to save test results.
1
2
3
4
5
6
7
Saving Results for Bi-directional Reporting
• Results must be obtained and stored from each end of the
network. Bi-directional averaging and report generation is
performed using TRM 3.0.
• To ensure TRM can associate results from both ends, proper naming of test results is critical:
• Use same Project name and Fiber Group name when testing from each end.
• Fiber Group name created from End1, End2 and Cable names.
• Use same End1 and End2 names.
– End1 and End2 names must be swapped when testing from End2.
– Reset ber number to same starting ber when testing from End2.
