1 Touch to enable/disable light source. RED Laser
A
indicates that source is ON.
2 Touch to select test mode: Wave ID, CW, Tone (270 Hz, 330 Hz, 1 kHz, 2 kHz).
– Select Wave ID mode for fastest loss measurements. While in this mode, the FlexScan source transmits
wavelength information, enabling a Wave ID power meter to synchronize and measure power at
received wavelength(s).
– Use CW mode to generate continuous wave light at a single wavelength. Use CW mode for loss
measurements with non-Wave ID power meter.
– Generate Tone for ber identication (270 Hz, 330 Hz, 1 kHz, 2 kHz).
3 Touch to select test wavelength.
1
2
3

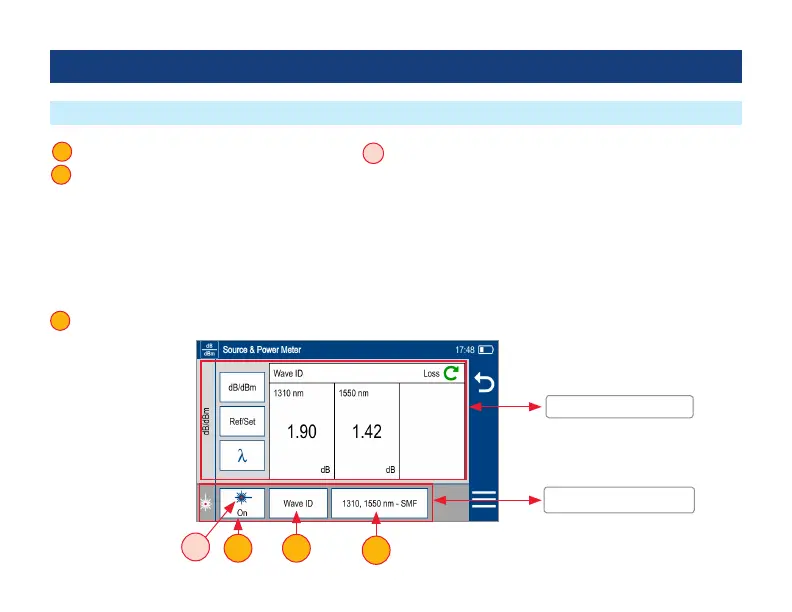

Light Source Settings and Features
Light Source and Power Meter Operation
1 2
3
Light Source Settings
Power Meter Settings
A
