SmartAuto

OTDR

Pass/Fail Rule

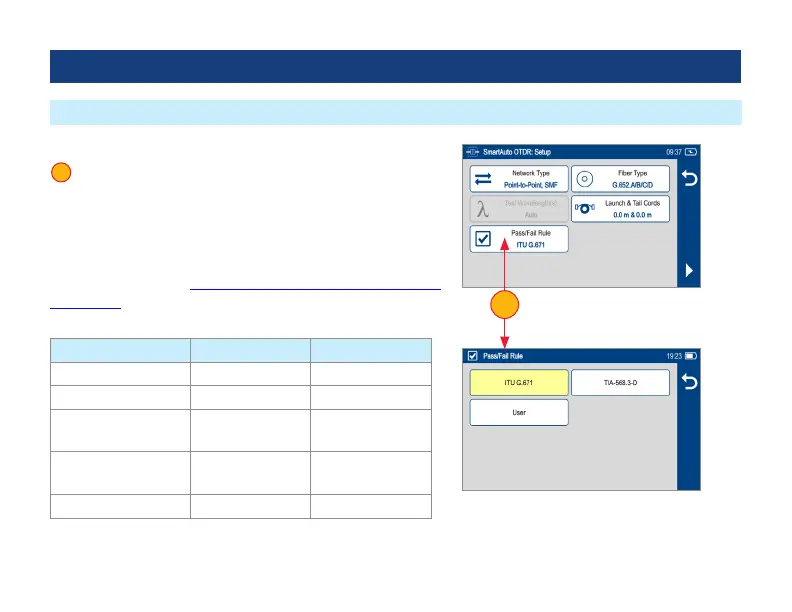

1 Touch Pass/Fail Rule option to select ITU G.671, TIA-568.3-D

or User-congured rules:

– ITU G.671

– TIA-568.3-D

– User-congured

For details, see section “Viewing and Conguring Pass/Fail Rule”

on page 31.

OTDR results are evaluated against selected or congured rules:

Pass/Fail Limit ITU-G.671 TIA-568.3-D

Pass if Splice Loss ≤ 0.3 dB ≤ 0.3 dB

Pass if Connector Loss ≤ 0.5 dB ≤ 0.75 dB

Pass if Conn. Reectance ≤ -35 dB (SM);

≤ -26 dB (MM)

≤ -35 dB (SM);

≤ -26 dB (MM)

Pass if Splitter Loss Min ≤ Loss ≤ Max (dB)

(Split ratio dependent)

Loss ≤ Max (dB)

(Split ratio dependent)

Pass if Splitter Reectance ≤ -55 dB ≤ -55 dB

SmartAuto OTDR Setup Summary
