AFL FlexScan FS300 - SmartAuto OTDR; Launch & Tail Cords Configuration

29
A
Launch & Tail Cords

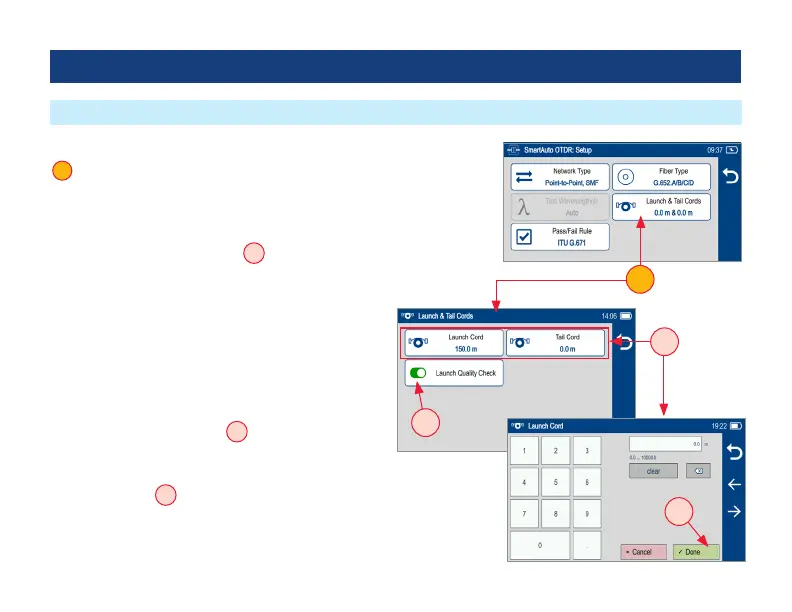

1 Touching Launch & Tail Cords option displays
the Launch & Tail Cords Setup screen that
allows the user to congure the following
settings:
• Enable Launch Quality Check
A
. When Launch
Quality Check is enabled, FlexScan checks
loss and reectance of FlexScan connection to
the network enabling the user to detect dirty,
damaged, poorly seated, or mismatched (UPC to
APC) connectors.
• Congure Launch and Tail Cords lengths, if
present.
– Touch the Launch or Tail Cord eld to display
the length editor screen
B
.
– Using on-screen controls, enter the desired
length.
– Touch Done
C
to save changes and return to
the OTDR Setup screen.
