AFL FlexScan FS300 - Front Panel Buttons and Indicators

10

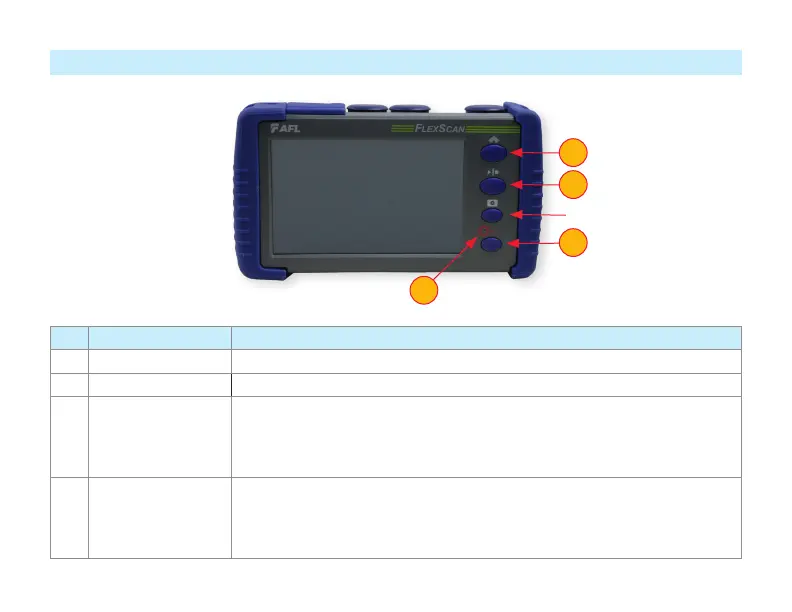

Front Panel Buttons and Indicators
Ref Feature Description
11 Home button Press to access the Home screen.
12
Test start/stop button
Press to start a new test; or, if a test is running, stop the current test.
13 VFL button Use the VFL button to control the VFL laser:
Press and hold ~ 1 sec to enable VFL at ~2 Hz ash rate
Press and hold ~ 2 sec = CW
Press and hold ~ 1 sec to switch off
14 VFL indicator When the VFL port is active this indicator illuminates as follows:
• Flashing RED = VFL ashing at ~2 Hz rate
• Solid RED = VFL on CW
• OFF = VFL is off
11
12
13
14
Reserved
