AFL FlexScan FS300 User Manual

34

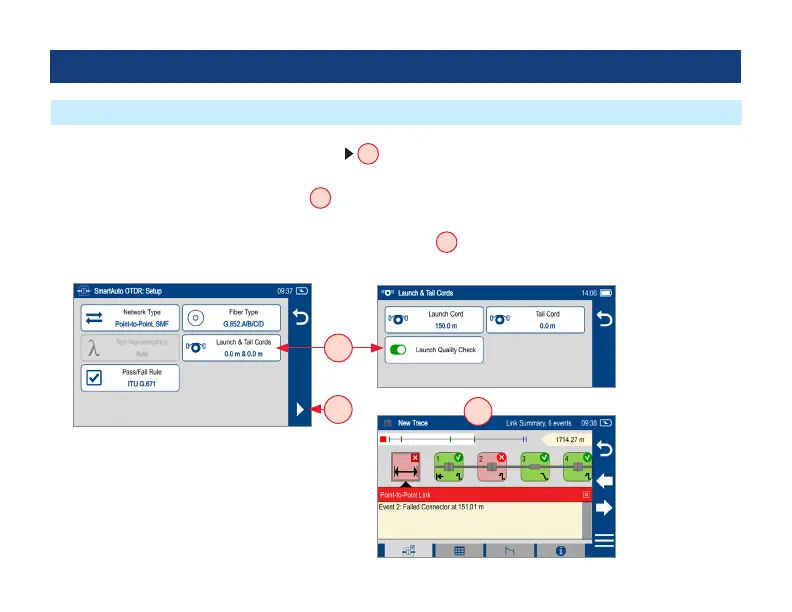

1 Initiate the SmartAuto test by touching Start
A
soft key or pressing Start/Stop button.
2 FlexScan begins testing with the Live Fiber check and if a live ber is NOT detected, proceeds to next step.
3 If the Launch Quality Check is enabled
B
, FlexScan checks loss and reectance of the OTDR connection.
4 If launch quality is ‘Good’, FlexScan starts testing at both wavelengths using SmartAuto settings.
5 When testing is completed, FlexScan displays the LinkMap
®
C
screen, which is a primary display in
SmartAuto OTDR mode.
To Start SmartAuto OTDR Test
SmartAuto
®
OTDR
A
B
C
