File Manager
Fiber test results
A
may be stored in the FlexScan internal memory or external USB stick.
Saved test results are organized into a Fiber Group sub-folder
B
within a Project folder
C
.
Fiber Groups Results - Fibers

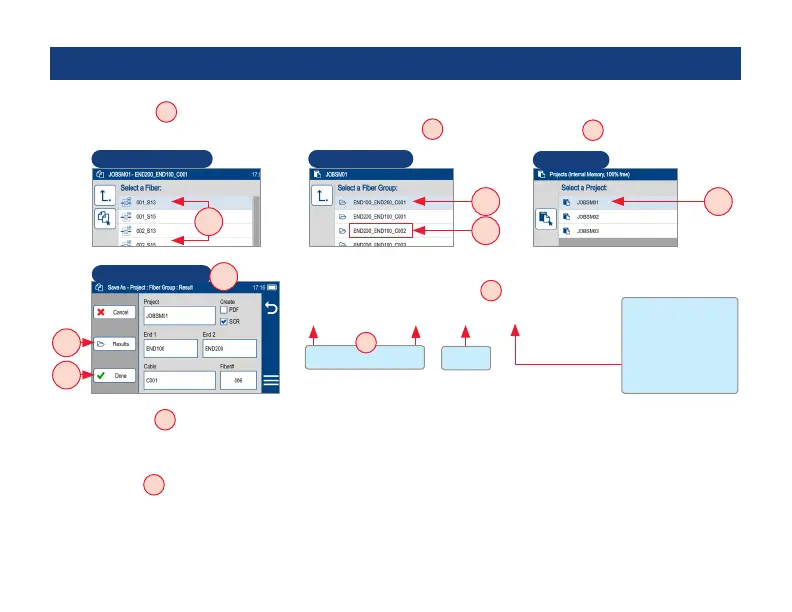

The name of a saved result consists of several parameters, which are
dened in the Save As screen
D
.
Projects
Save As Screen
D
B
E
C
F
G
A
End 1_End 2_Cable_Fiber#_Wavelength
Fiber Group Name
E
Fiber#
S13 for 1310 nm
S15 for 1550 nm
M85 for 850 nm
M13 for 1300 nm
• Touch Results
F
to display File Manager and navigate to the desired Project / Fiber Group folder.
• Project, End 1, End 2, and Cable are user-dened in Text Editor.
• Fiber number auto-increments after each save, but can be modied in Number Editor as needed.
• Touch Done
G
when nished.
For Bi-directional OTDR reports, results must be obtained and stored from each end of the network:
• Use same test settings (range, pulse width, etc.) in both directions; Use same launch and receive cables in both
directions; Swap End1, End2 names; Bi-directional averaging and report generation is performed using TRM 3.0.
