AFL FlexScan FS300 User Manual

27

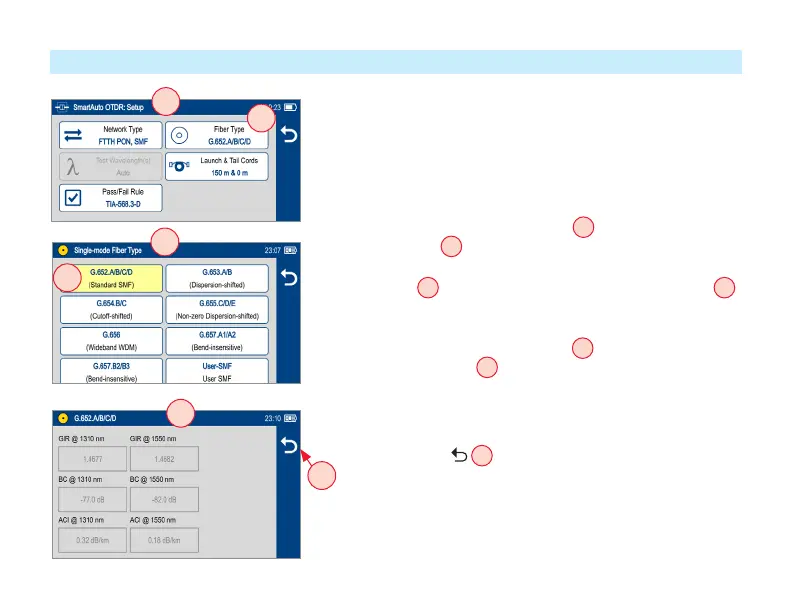

Viewing and Configuring Fiber Type
G.65x Fiber Settings may be viewed but NOT changed.
OMx Fiber Settings may be viewed but NOT changed.
User Settings may be viewed and changed.
To view G.65x or OMx Fiber Settings
• While in the OTDR Setup screen
A
, make sure G.65x/OMx
ber type
B
is displayed in the Fiber Type eld.
• If not, touch the Fiber Type eld to display the Fiber Type
menu
C
and touch the desired G.65x/OMx ber types
D
to select.
• When back in the OTDR Setup screen, touch and hold the
displayed G.65x/OMx ber type
B
to open and view the
default settings
E
as follows:
– Group Index of Refraction (GIR)
– Backscatter Coefcient (BC)
– Fiber Attenuation (ACI; Loss-per-Distance)
• Touch Back
F
to return to the OTDR Setup screen.
C
B
D
A
E
F
SmartAuto OTDR Setup Summary
