13.
Fit the belt pulley and tighten its attaching
nut to a torque of 80 Nm (M12) or to 120 Nm
(M16).
Note in particular the left-hand thread of the
belt pulley attaching screw.

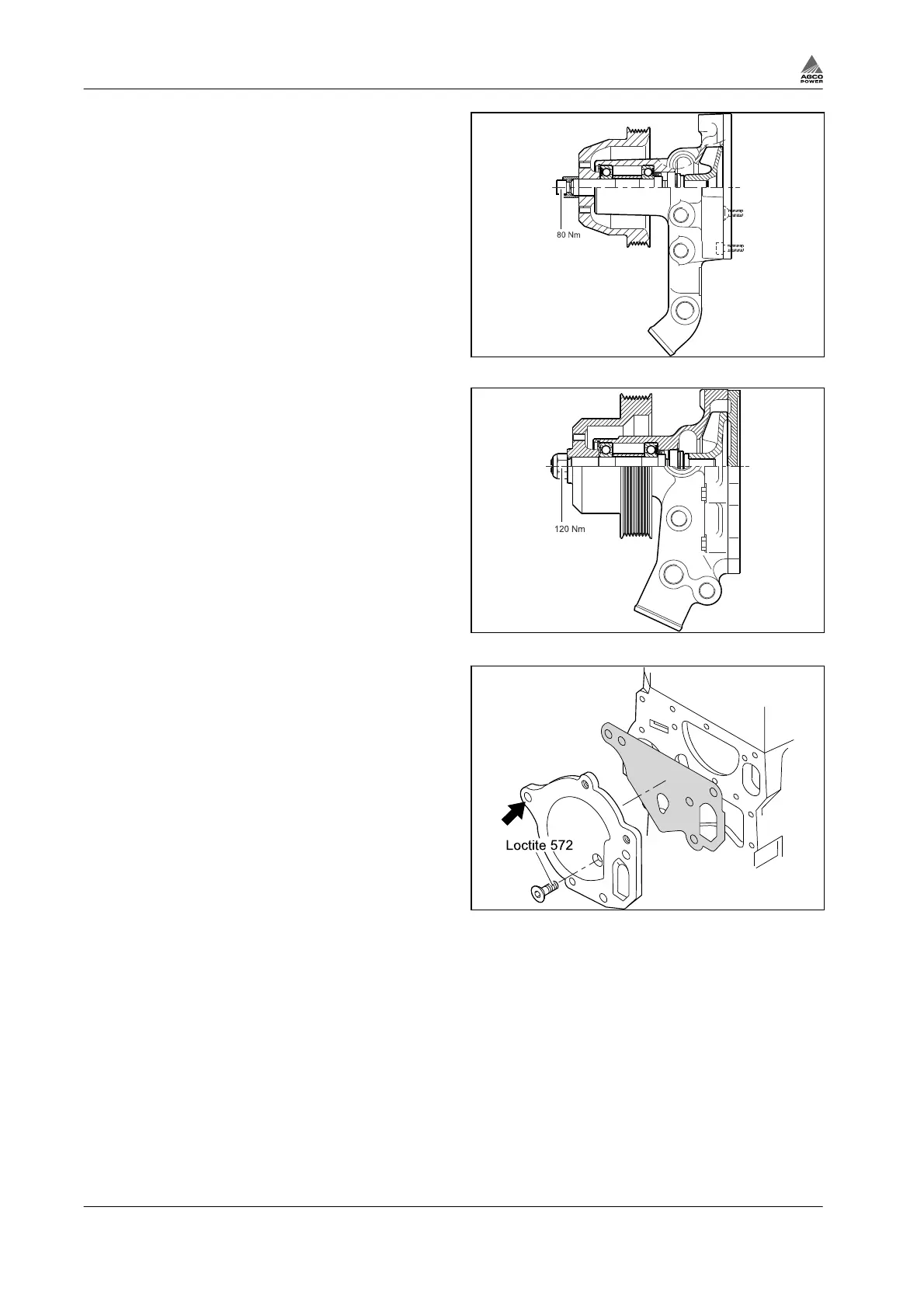

Fig. 88
Fig. 89
14.
Fit the rear plate to the cylinder block using a
new seal.
a) Use guide pin (Ø8 mm) in the hole shown
with an arrow in the figure.
b) Apply sealing compound to the thread of
the screw.
Fig. 90
