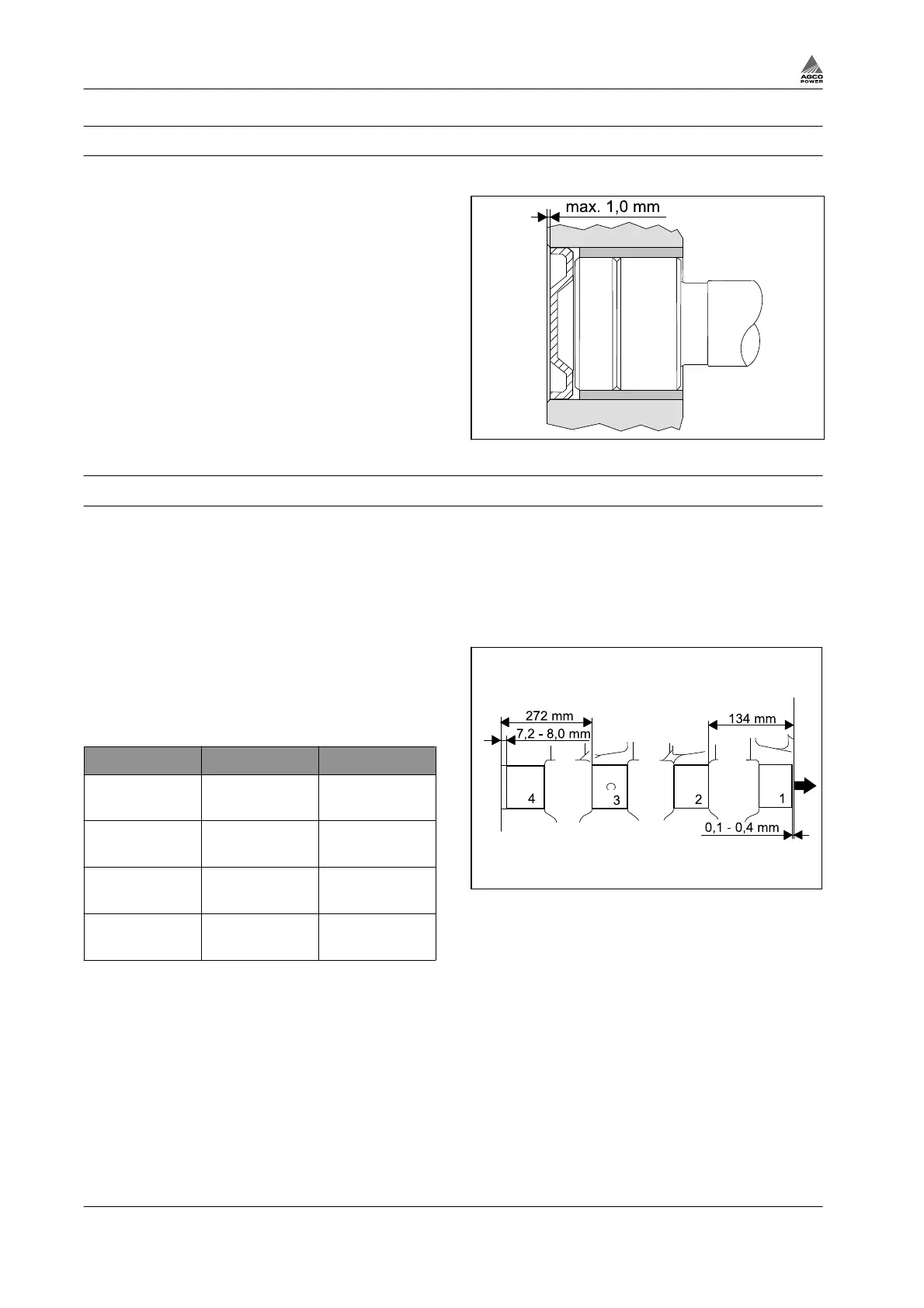

3.1.6 Fitting plug at camshaft rear end
Procedure
1.
Clean the seat for the plug.
2.
Apply sealing compound 8366 62737 (Loctite
638 or similar) to the contact surface of the
plug.
3.
Drive in the plug with fitting drift 9025
87400.
NOTE: Do not drive in the plug too far
because it will affect the camshaft end float.
Fig. 7
3.1.7 Oversize bushings for camshaft
If the location of the camshaft bushing (front bearing) is damaged, a bushing with a 0.4 mm oversize outer
diameter can be fitted. Bushings are available even for other camshaft bearings which do not normally
have bushings.
Look for the position of the bushing oil holes. It is not necessary to ream the bushings after fitting.
33-49 engines
Machining dimensions for the bushing locations
are shown in the figure. Order numbers of the
oversize camshaft bushings and hole diameters for
the bushings are shown in the table. Numbering
begins from the front end of the engine.
Hole diameter Order number
1 56.02 - 56.05
mm
8368 66036
2 55.42 - 55.45
mm
8368 52460
3 55.42 - 55.45
mm
8368 52460
4 55.64 - 55.67
mm
8368 52461
Fig. 8
