AGCO Power 49 - Page 75

Hole 98 engine Hole diameter
1 55.62 - 55.65 mm
2 55.42 - 55.45 mm
3 and 4 55.22 - 55.25 mm
5 55.42 - 55.45 mm
6 55.64 - 55.67 mm

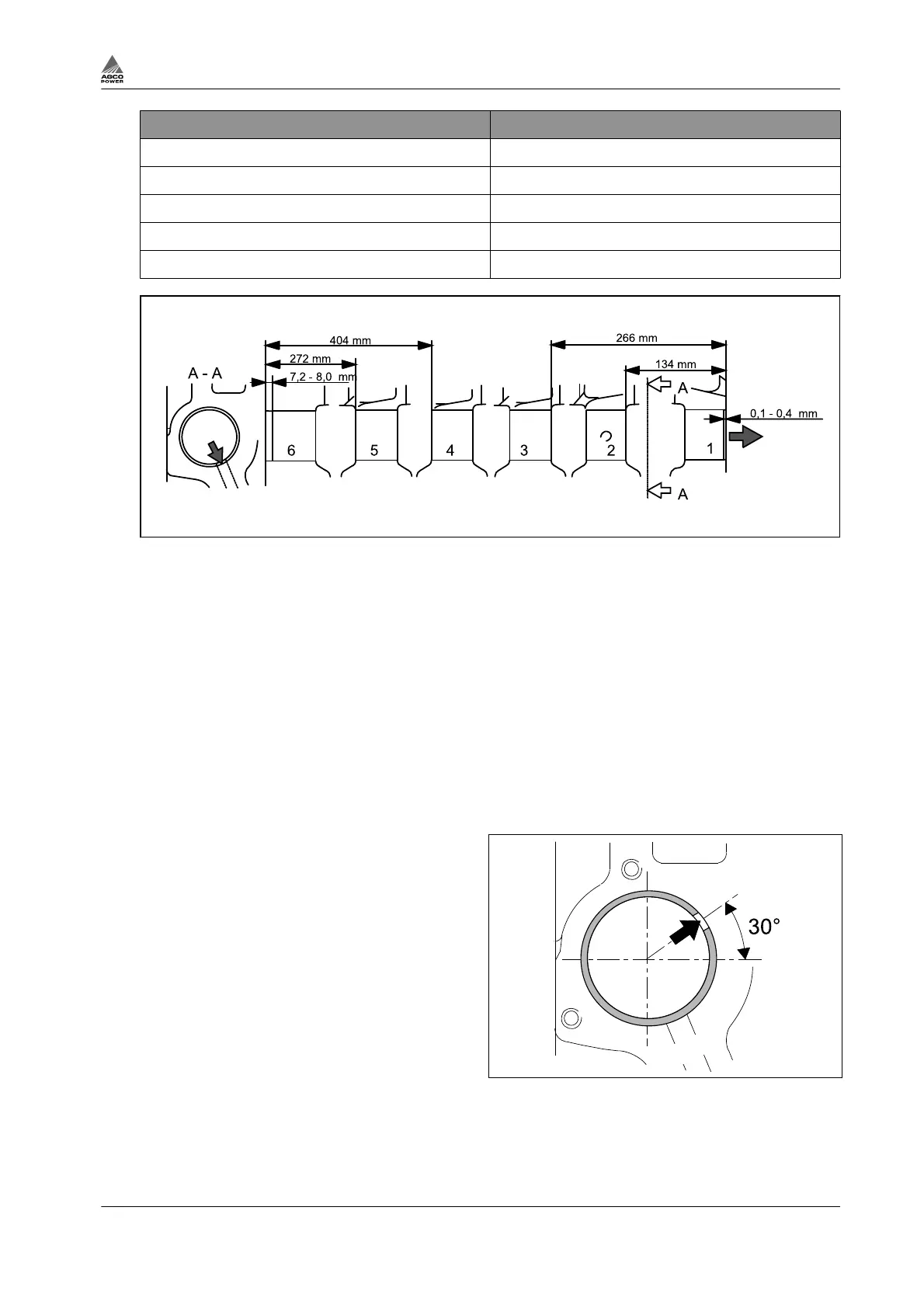

Fig. 5
3.
66-84 engines:Press in new bushings (2 - 6).
a) Look for the different outer diameters.
b) Note the position of the oil hole.
c) It is not necessary to ream the bushing, because the bushing has a correct inner diameter when
the bushing is fitted in position.
NOTE: The camshaft front end bushing (1) is equipped with the oil groove on the outside.
4.
98 engine:Press in new bushings (2 - 6).
a) Look for the different outer diameters.
b) Note the position of the oil hole.
c) It is not necessary to ream the bushing, because the bushing has a correct inner diameter when
the bushing is fitted in position.
NOTE: The camshaft front end bushing (1) is equipped with the oil groove on the outside.
5.
Fit the camshaft front end bushing (1).
a) Fit the oil hole of the bushing at a 30°
angle from horizontal level.
b) It is not necessary to ream the bushing,
because the bushing has a correct inner
diameter when the bushing is fitted in
position.
Fig. 6
3. Maintenance
4th Generation Engines 3-7
8370 79492
