3.15.3 Sensors of the engine control system

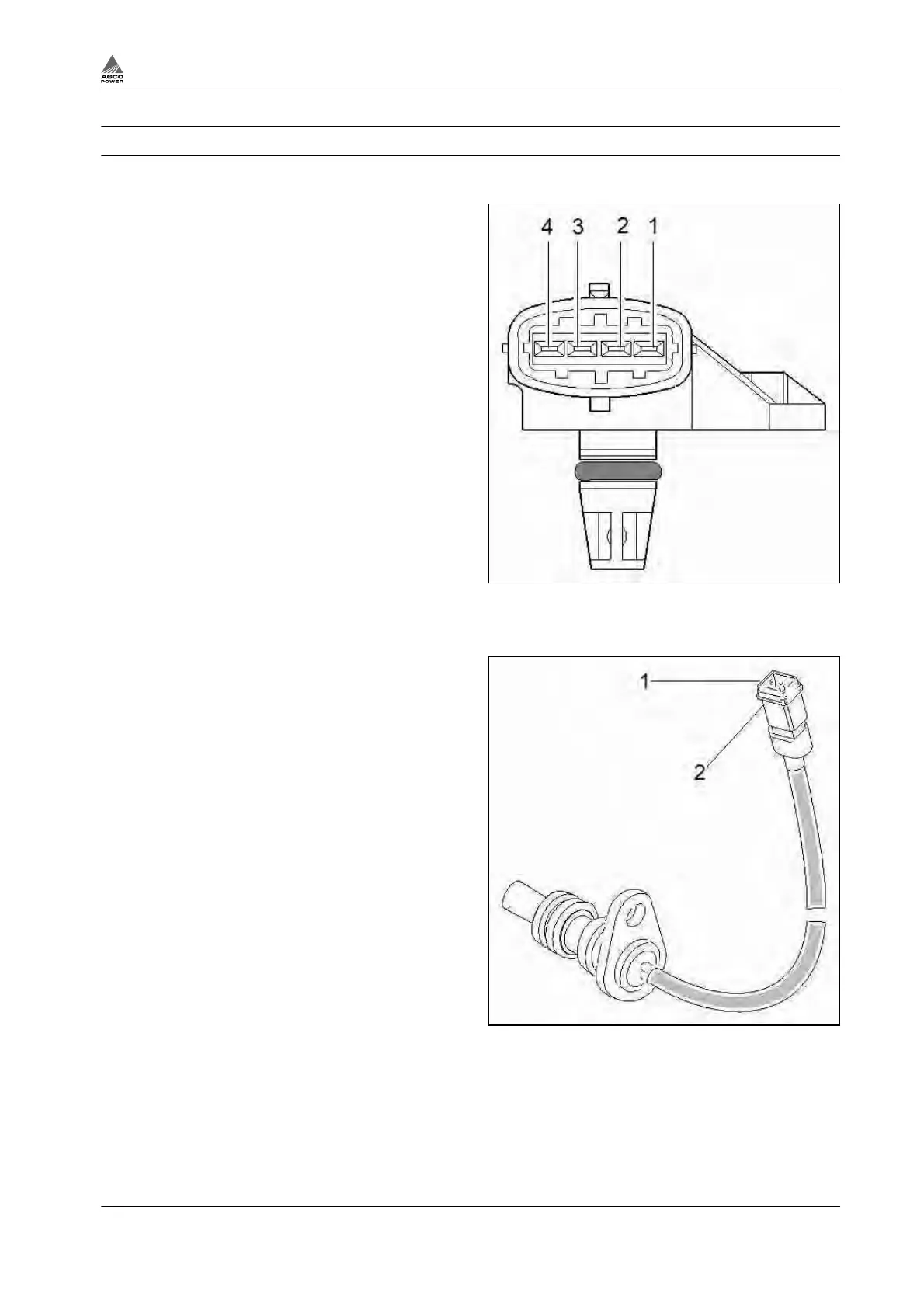

Boost Pressure/Air Temperature Sensor
(1) Ground
(2) Temperature signal
(3) +5 V
(4) Pressure signal
Location: Boost pipe
• Screw M5/3.3 Nm
Fig. 122
Speed Sensor (camshaft)
(1) Ground
(2) Rpm signal
Location: In timing gear housing
• Screw M6/8 Nm
• O-ring, order no. 6146 01718
Fig. 123
