b) Press the outer bearing into its place and
fix the lock ring.
6.
Press the water seal into its place with drift
9201 97880.
7.
Press the impeller into its place while
supporting the axle on the other end.
See the mounting depth of the impeller from
the Coolant pumps with standard
bearings.
8.
Fit the pump rear plate and the belt pulley.
9.
Mount the pump to the engine.
10.

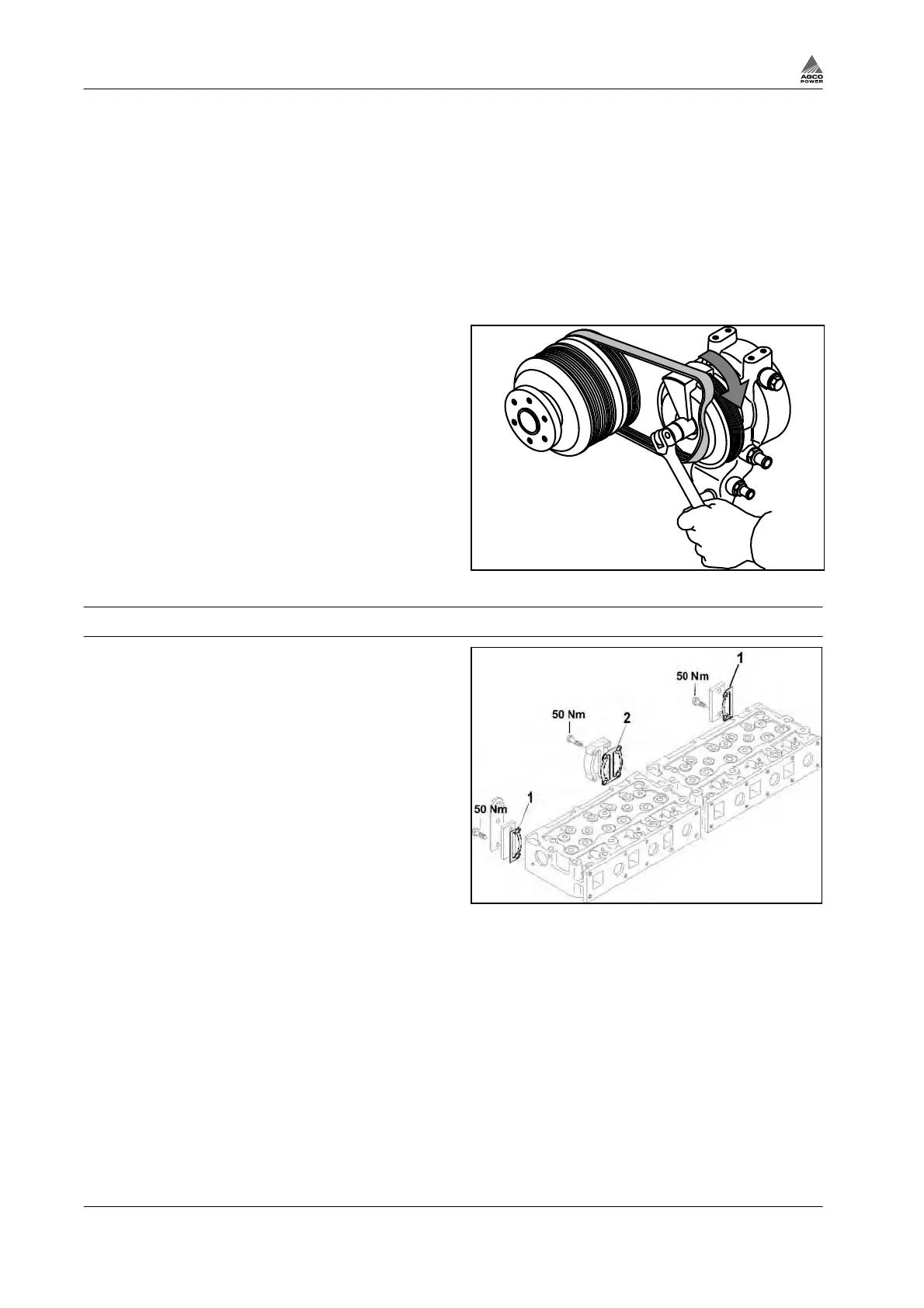

Fit a new drive belt with fitting tool 9201
86480 or a fitting device delivered by the
replacement belt manufacturer.
NOTE: The Flexonic belt does not have a
separate tensioner. Belt replacing is
recommended after every 3000 running
hours or when it has been removed.
Fig. 94
3.11.5 Installing the cylinder head connection part
NOTE: When installing cylinder head connection
part and side covers, the gaskets (1 and 2) must
be installed with protruded side towards the
cylinder heads for better sealing. Tightening torque
for connection part bolts is 50 Nm. Tighten the
screws in crosswise sequence.
Fig. 95
3. Maintenance
3-56 4th Generation Engines
8370 79492
