AGCO Power 49 - Link Rod

Pin Number Assignment
1 Vbat
2 GND
3 CAN low
4 CAN high
Procedure
1.
Switch on the ECU.
2.
Measure the voltage between wire 3 from the ECU and ground 2. The voltage should be
approximately 2V.
3.
Measure the voltage between wire 4 from the ECU and ground 2. The voltage should be
approximately 3V.
4.
Measure the voltage between wire 1 from the ECU and ground 2. The voltage should be
approximately 12V.
3.12.5.1 Link rod
The length of the link rod must be adjusted very
carefully in case it has been damaged or after
changing the actuator. Check the correct length of
the link rod for actuator in static state from the
table.
Length (l) of the link rod
Fendt 292 mm
Massey Ferguson 329 mm
Valtra 269 mm

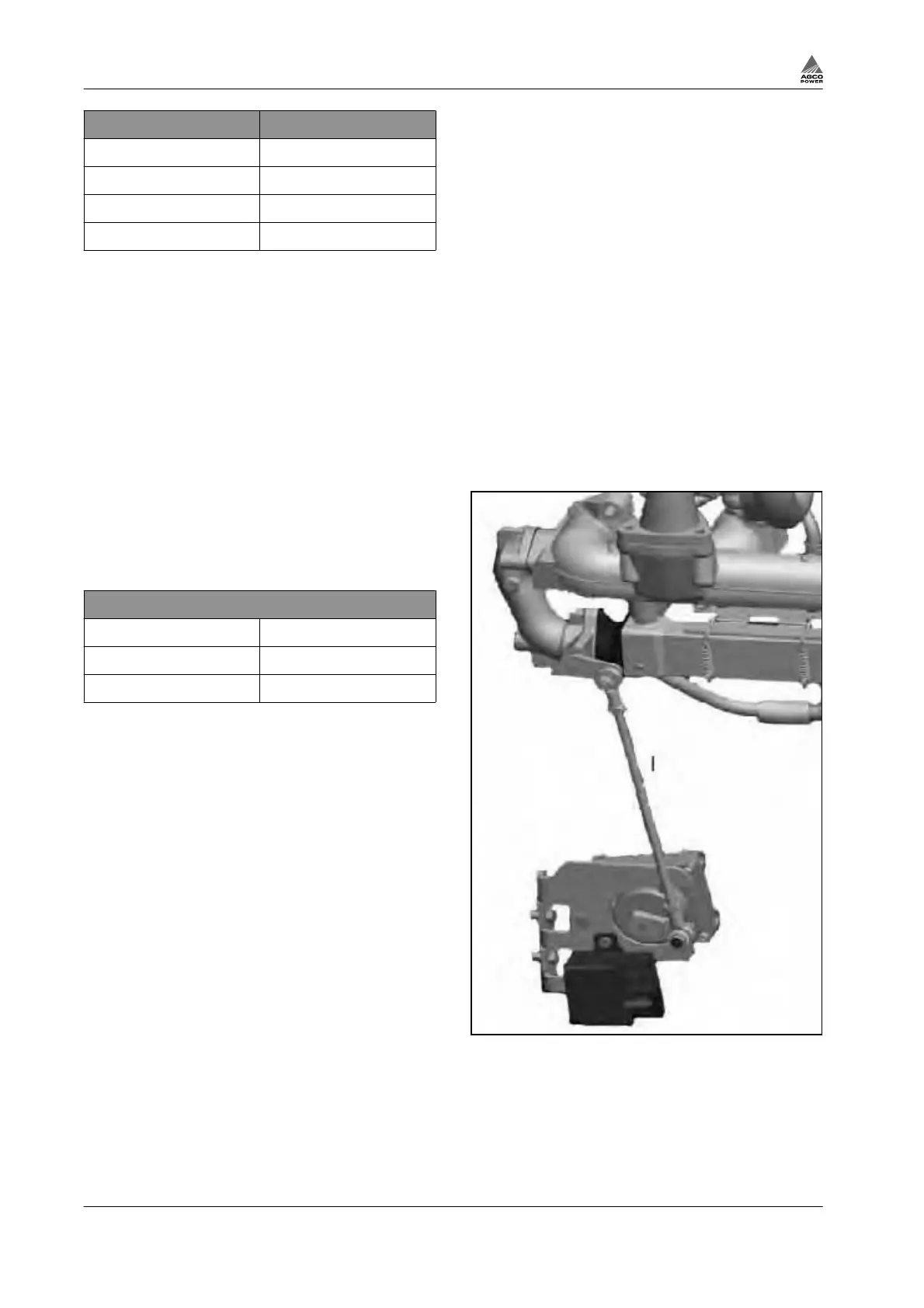

Fig. 101
