6.

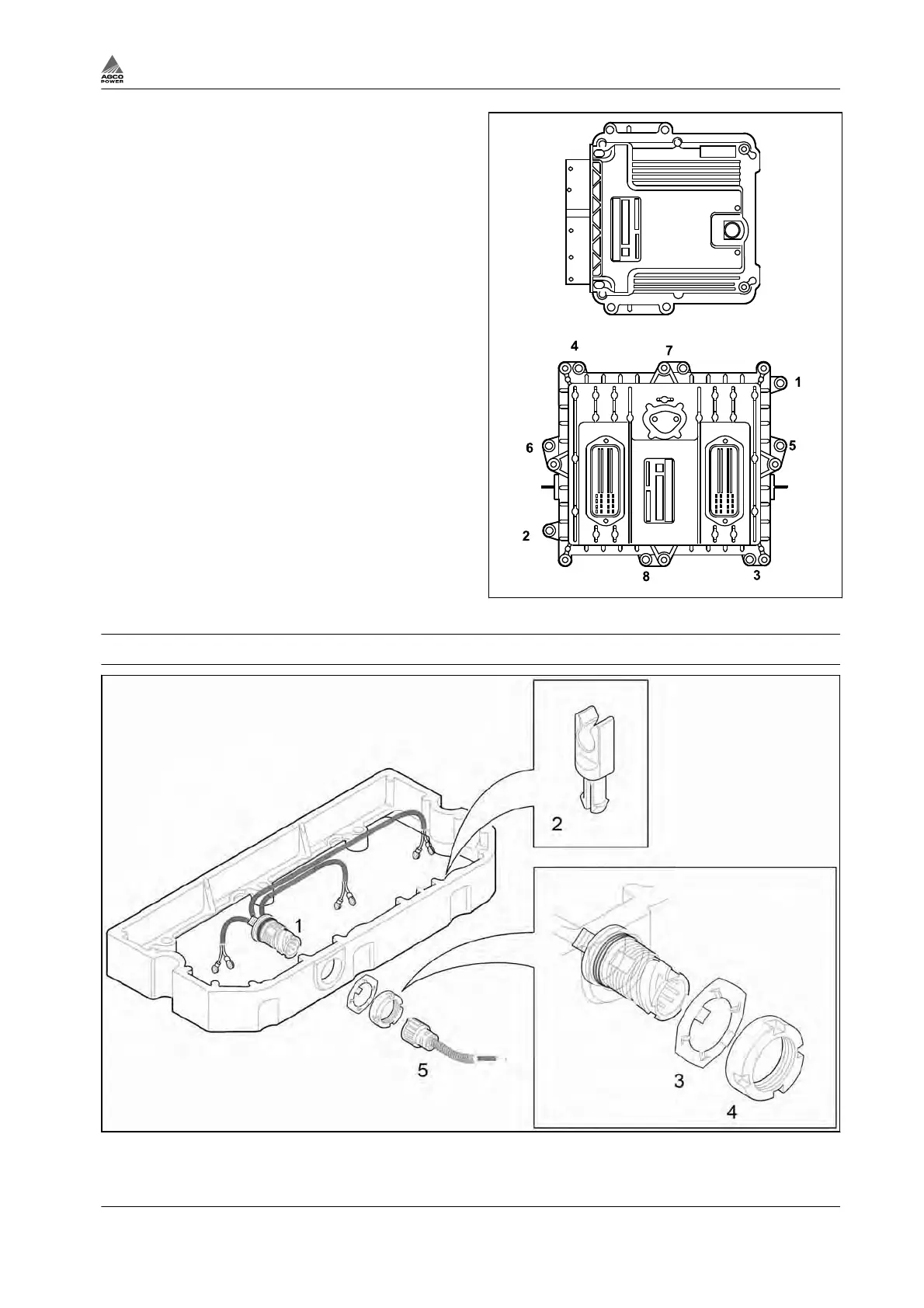

98 engine: Tighten the screws to 10 Nm in
the order shown in the picture (EDC17CV41).
Note the earth wire under the screw no 8.
7.
Connect the multipole connectors and attach
the plastic cover.
8.
Turn the main switch to the ON position.
9.
Load the control unit (ECU) program using
the service tool.
See the instructions of the service tool.
Note that the SisuTronic service tool can be
connected using the adapter 8370 79553 if
the wiring harness for the vehicle connector
has been installed in the engine.
Fig. 118
3.15.2 Wiring sets
Fig. 119
(1) Injector wiring
(2) Injector wiring bracket
(3) Lock washer
(4) Nut
3. Maintenance
4th Generation Engines 3-73
8370 79492
