AGCO Power 49 - Fitting Plug at Camshaft Rear End (Oversize Bushings); Fitting Cylinder Liner

66-84 engines
Order numbers of the oversize camshaft bushings
and hole diameters for the bushings are shown in
the table. Numbering begins from the front end of
the engine. Installing places are the same as with
the standard bushings.
Hole diameter Order number
1 56.02 - 56.05
mm
8368 66036
2 55.62 - 55.65
mm
8368 52466
3 55.42 - 55.45
mm
8368 52460
4 55.62 - 55.65
mm
8368 52466
5 55.84 - 55.87
mm
8368 52467
98 engine
Order numbers of the oversize camshaft bushings
and hole diameters for the bushings are shown in
the table. Numbering begins from the front end of
the engine. Installing places are the same as with
the standard bushings.
Hole diameter Order number
1 56.02 - 56.05
mm
8368 66036
2 55.62 - 55.65
mm
8368 52466
3 55.42 -55.45
mm
8368 52460
4 55.42 - 55.45
mm
8368 52460
5 55.62 - 55.65
mm
8368 52466
6 55.84 - 55.87
mm
8368 52467

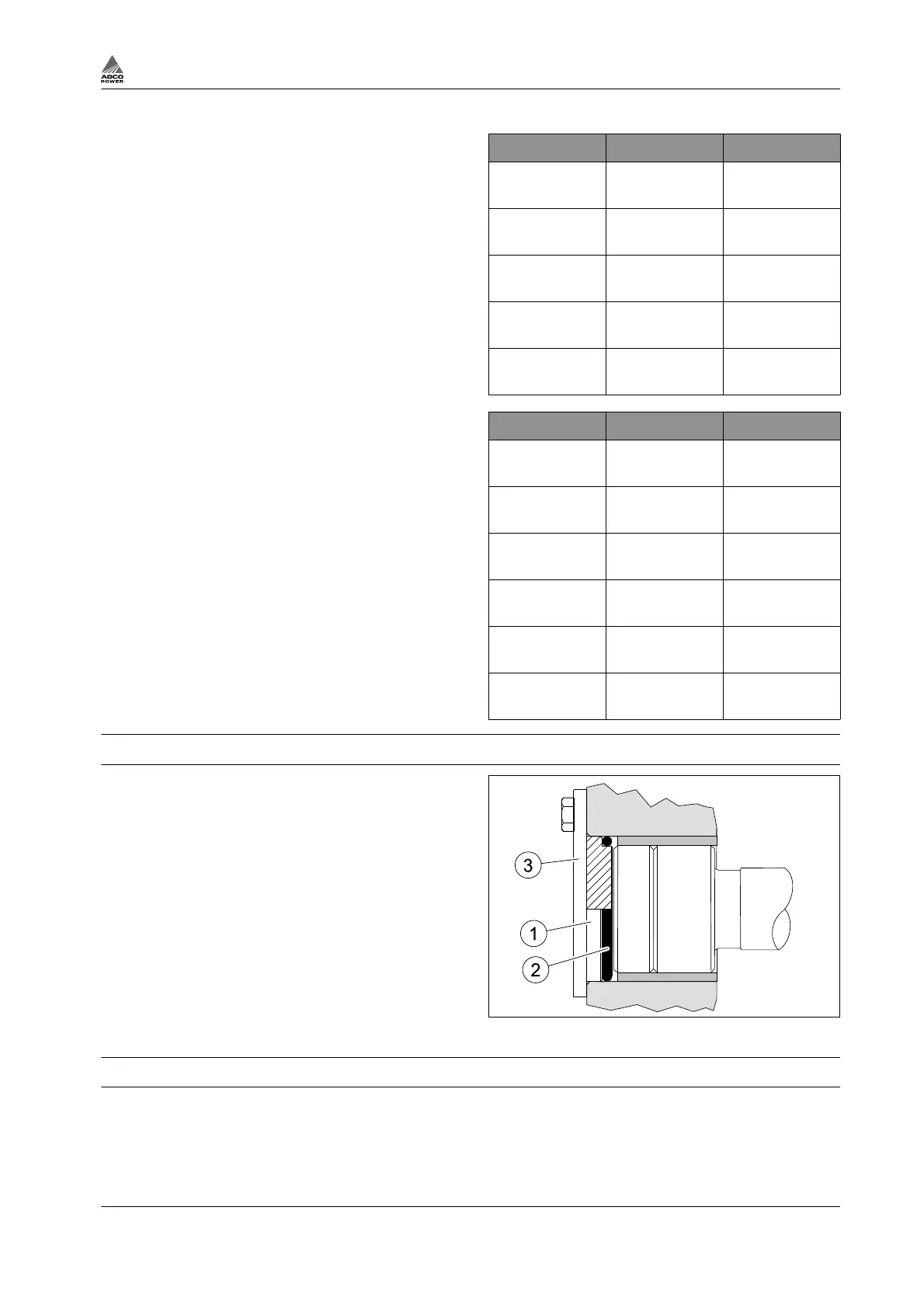

3.1.8 Fitting plug at camshaft rear end (oversize bushings)
The camshaft rear end plug is replaced with plug
8368 52744 (1) and O-ring 6146 05125 (2) after
machining. Use plate 8361 24210 (3) in those
engines where the flywheel housing is not
covering the blocking plug.
Fig. 9
3.1.9 Fitting cylinder liner
Procedure
1.
Clean the cylinder liner and the recess of the cylinder liner in the cylinder block.
Without O-rings, the cylinder liner rotates easily in the recess of the cylinder liner.
2.
Check the condition of the recess of the cylinder liner and the cylinder liner height.
3. Maintenance
4th Generation Engines 3-9
8370 79492
