1.3.15 Service tool of the engine control system
The EEM4 engine control system can only be
operated using this service tool with additional
parts.
In combination with a laptop, this service tool can
be used to modify the engine control system, for
example to adjust the running speed and running
hours (values can only be increased) and calibrate
the throttle. It is also easy to follow up the fault
diagnostics, update software, perform a function
test of the injectors and high pressure pump and
other service related tasks, like reading the running
and shutdown memory. The engine identification
and operation memory can also be read by the
SisuTronic EEM4 service tool.
It is possible to carry out repair work, such as
changing an electronic control unit (ECU), using
the SisuTronic EEM4 service tool.

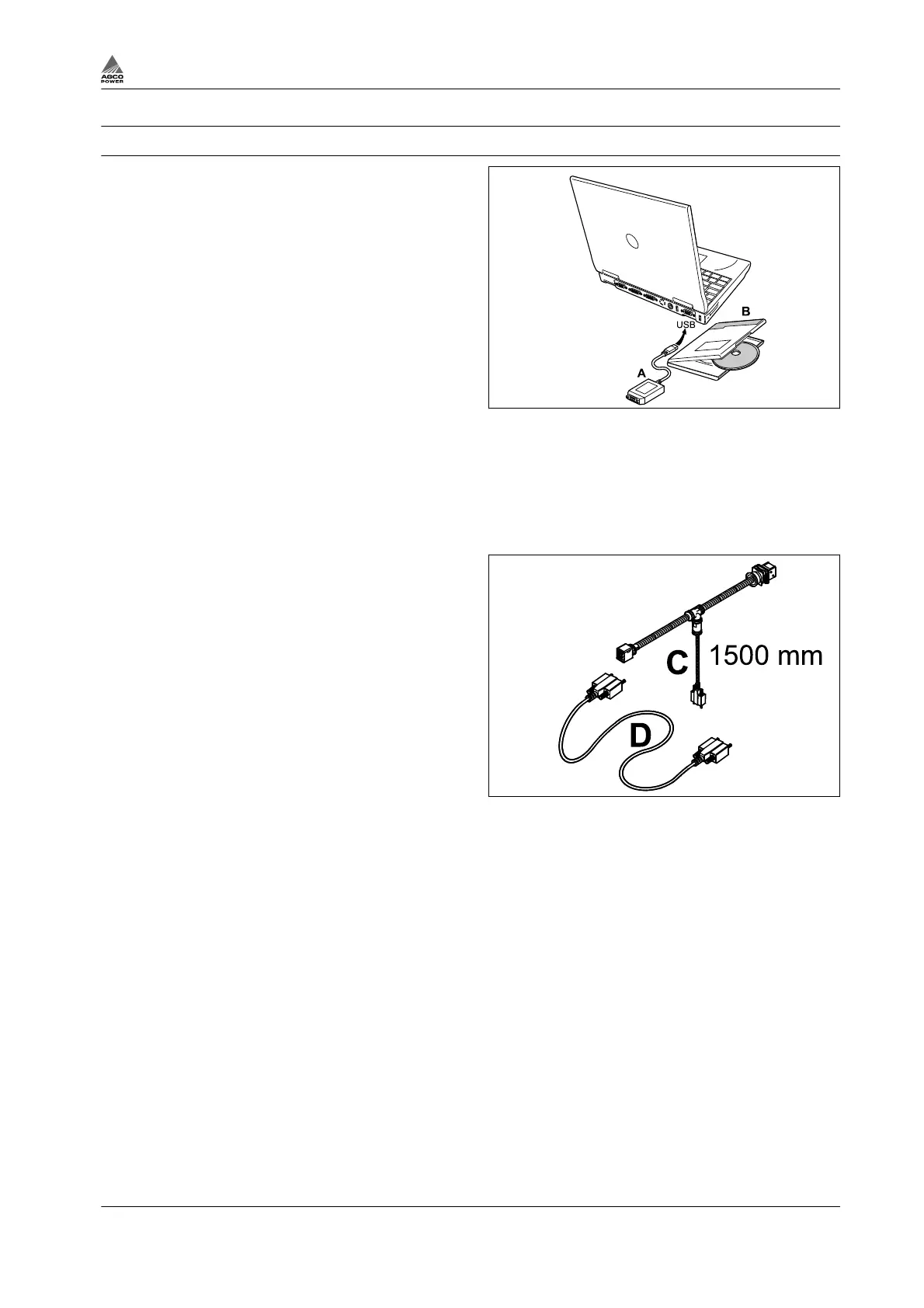

(A) Can adapter for connection via USB port
(B) Win EEM4 program
Fig. 22
Furthermore, the service tool can be used to
cancel the stopping requests made, irrespective of
the engine, for example power cuts or insufficient
voltage (such as earthing problems, power needed
when the engine is running: ~8 A and voltage >7
V) in the machine and the stopping requests
initiated by the gear box.
The service tool has a licence number. Every time
an engine is connected to the service tool for
adjustment or any other reason, this licence
number is found in the EEM4 system.
The service tool and the additional parts are sold
and supplied by AGCO Power Inc. Service
Department.
(C) Adapter for application connector (pin-to-pin)
(D) Extension cable L = 5m
Fig. 23
