Speed Sensor (crankshaft)
(1) Ground
(2) Rpm signal
Location: Cylinder block, left side
• Screw M8/25 Nm
• O-ring, order no. 6146 01524

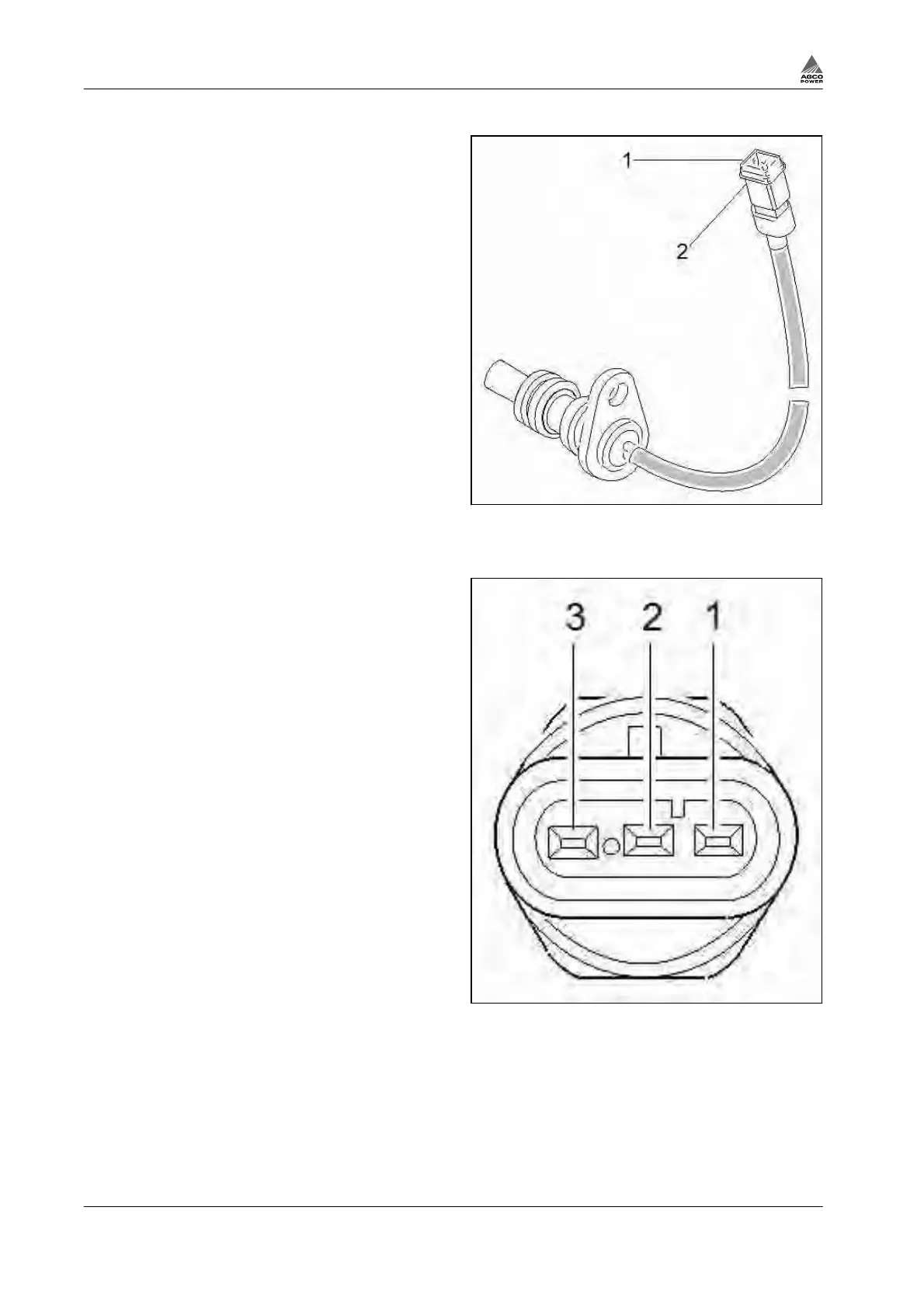

Fig. 124
Oil pressure sensor
(1) Ground
(2) Pressure signal
(3) +5 V
Location: Cylinder block, right side
• Thread M10x1/25 Nm
• Seal ring, order no. 6158 71016
Fig. 125
