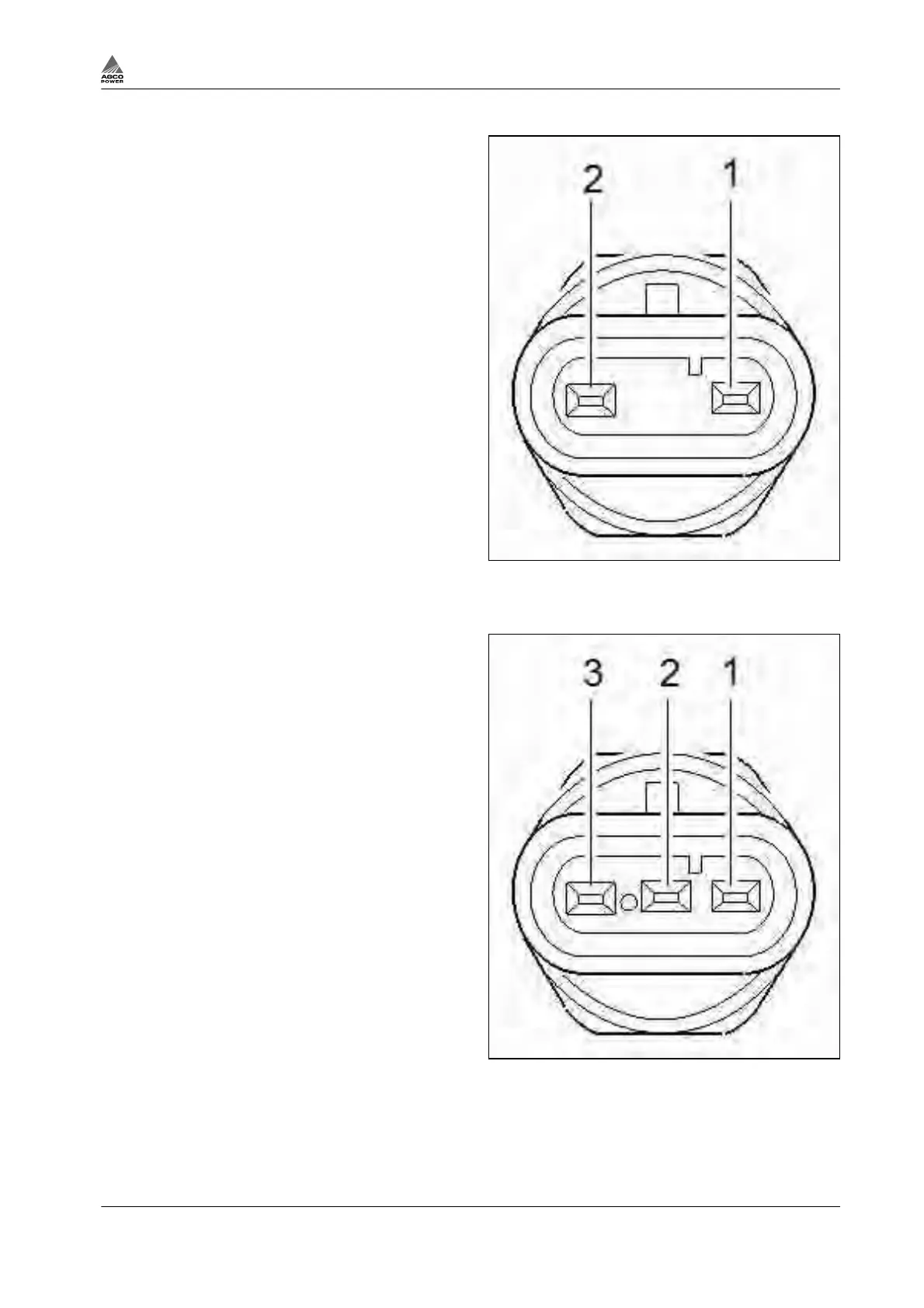

Coolant and fuel temperature sensor
(1) Temperature signal / fuel signal
(2) +5 V
Location: Cylinder head / coolant sensor and in fuel
filter / fuel sensor
• Thread M12x1.5/25 Nm
• Seal ring, order no. 6158 81418
Fig. 126
Fuel transfer pressure sensor
(1) Ground
(2) Pressure signal
(3) +5 V
Location: Main filter
• Thread M10x1/25 Nm
• Seal ring, order no. 6158 71016
Fig. 127
3. Maintenance
4th Generation Engines 3-77
