6.
Fit the seal.
a) Fit the seal dry, not oiled.
b) Put the seal carefully on the shaft.
Make sure that the sealing lip is not
damaged.
c) Hit the seal into position with the fitting
tool.

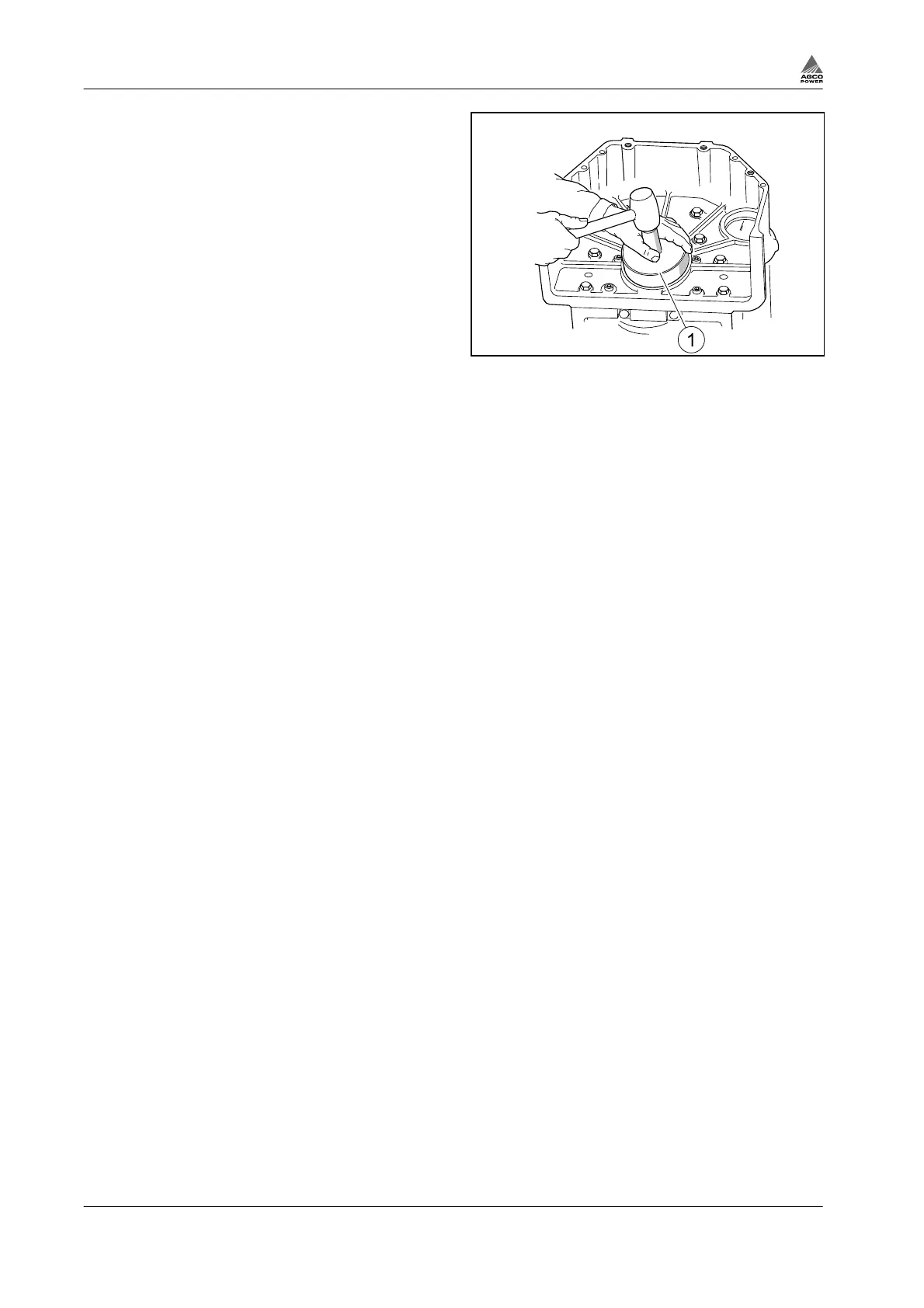

Fig. 17
(1) Fitting tool 9052 46300 Fitting tool 9104
52600 (84 and 98 engines)
