Chapter 4 Maintenance Procedures 101
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
See for page 11 for instructions on closing the front access panel. In this case, when
you close the access panel, the safety interlock is disengaged message does not
appear.
10. Tap OK.
A pump begins to draw the
water into the supply tank (Figure 4.17). Wait for the supply
tank to fill. An internal sensor monitors the tank level and will stop the pump when the
tank is full. It takes approximately 15 minutes to fill a completely empty tank.
When the tank has been filled, a prompt appears (Figure 4.18).
11. Open the main door and lift the front access panel to access the tank control valves.
See for page 10 for instructions on opening the front access panel.
12. Set the valves to position "B1" for normal operation (see Table 4.1).
WARNING
!
WARNING! Do not leave the tank valve levers in the straight-up position. This shuts off fluid flow
and will damage the instrument pumps if the instrument is operated in this state. The levers should
always point to A or B, or 1 or 2, depending on the current operation.
13. Close the front access panel. See for page 11 for instructions on closing the front
access panel.
14. Close the main door.

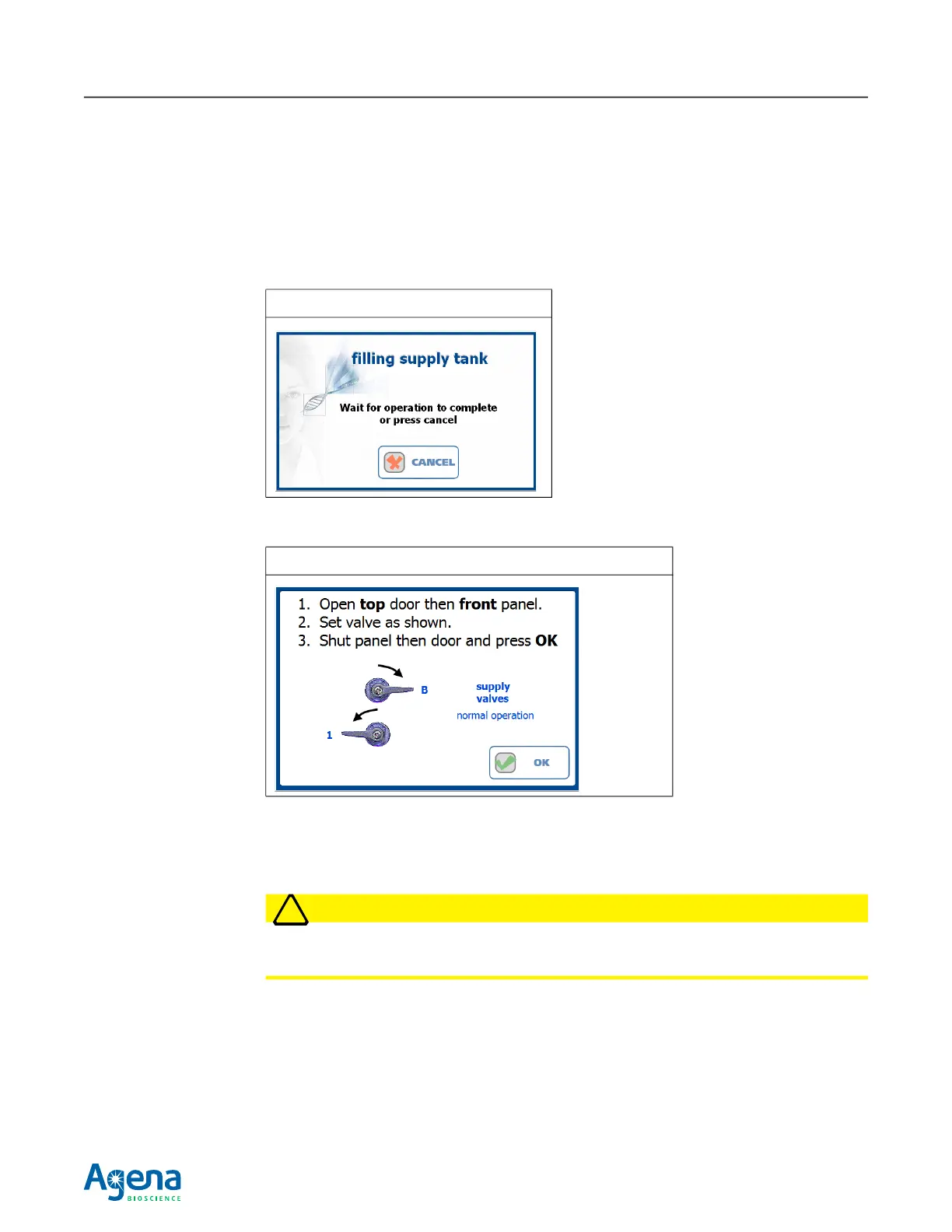

Figure 4.17 Filling Supply Tank Message
Figure 4.18 Prompt to Set the Valves for Normal Operation
