Appendix A Changing the Pin Format 119
USG-CUS-059 Rev05MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
c. Leave the main door open and tap OK.
The next instructions appear (Figure A.5).
NOTE
Your pin protection block may look different that the one in the photos below.
4. Place the pin protection block onto the dry station (Figure A.6).
Make sure that the pin protection block alignment pins fit into the correct dry station
well (Figure A.6).

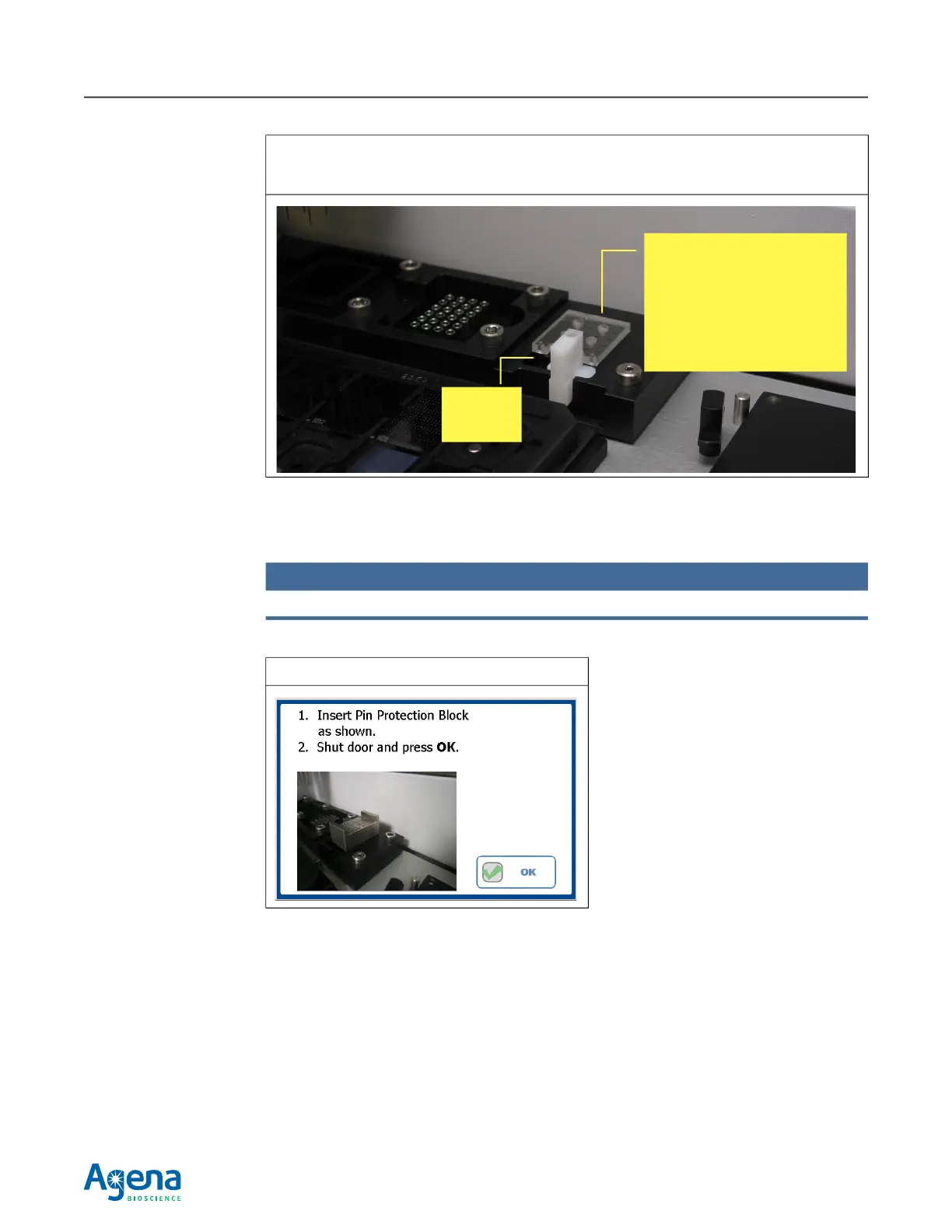

Figure A.4 Remove the Vacuum Cover and Calibrant Reservoir
This image shows the 6-pin vacuum cover. If your instrument is currently adapted to the 1-pin format,
the 1-pin cover will be installed. It looks just like the 6-pin cover except it has only one hole in it.
Figure A.5 Instructions for Next Steps
Calibrant
reservoir
Vacuum cover
If you are currently using the
standard 24-pin format, no
vacuum cover will be present
on the dry station. In this
case, you need only remove
the calibrant reservoir.
