150 1290 Infinity Quaternary Pump User Manual
9
Maintenance
Replacing the Pressure Sensor
5

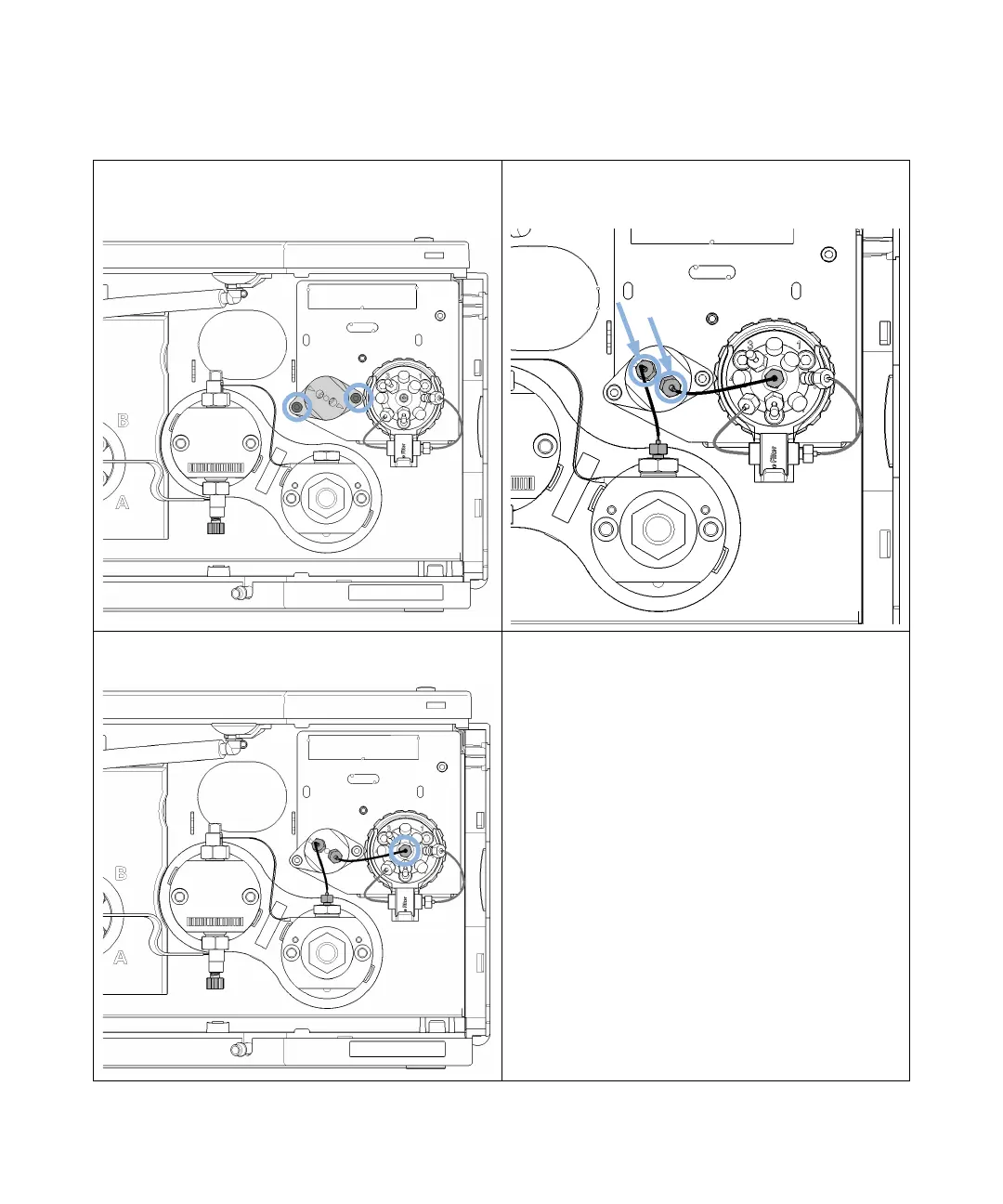

Fix the pressure sensor to the instrument chassis.
6
Connect the capillary from the pump head outlet to the
pressure sensor inlet. Two arrow signs on the pressure
sensor indicate the flow direction.
7
If applicable, connect the outlet of the pressure sensor
to the central port of the Multi Purpose Valve.
