1290 Infinity Quaternary Pump User Manual 159
Maintenance
9
Removing the Jet Weaver
Removing the Jet Weaver
Tools required p/n Description
8710-0510 Open-end wrench 1/4 — 5/16 inch
8710-0899 Screwdriver Pozidrive Shaft
Parts required # p/n Description
2 0100-1259 Plastic fittings
Preparations • Select Do not use mixer in ChemStation.
• Switch off the pump at the main power switch.

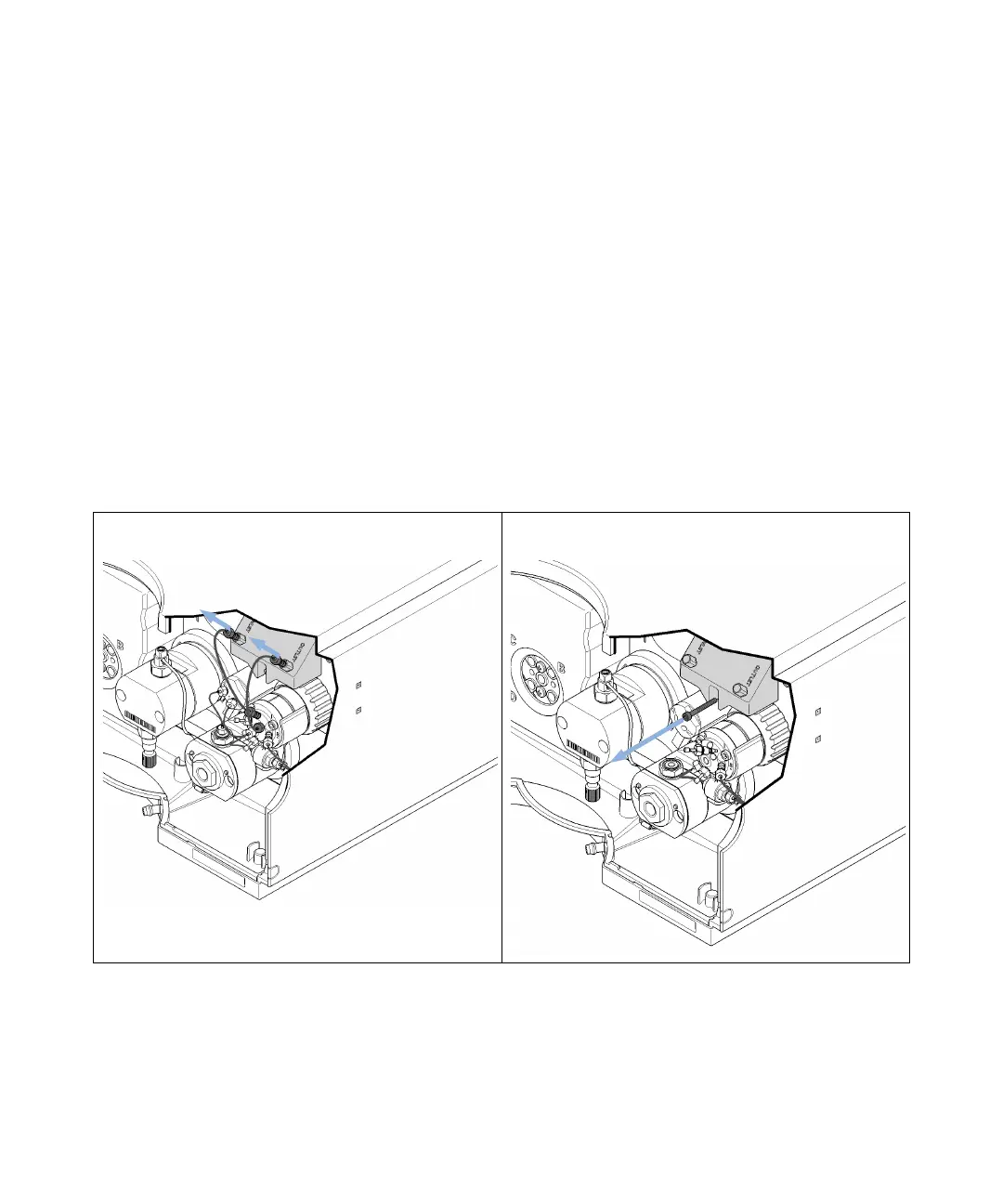

1
Remove capillary connections from the Jet Weaver to
the Multi Purpose Valve.
2
Open the screw, which fixes the Jet Weaver to the front
panel.
