1290 Infinity Quaternary Pump User Manual 163
Maintenance
9
Replacing the Seal Wash Pump
Replacing the Seal Wash Pump
When In case of wear of the seal wash pump
Parts required p/n Description
5065-4445 Peristaltic pump with Pharmed tubing
5065-9978 Tubing, 1 mm i.d., 3 mm o.d., silicone, 5 m
Preparations Remove the flow connections from and to the seal wash pump.
1

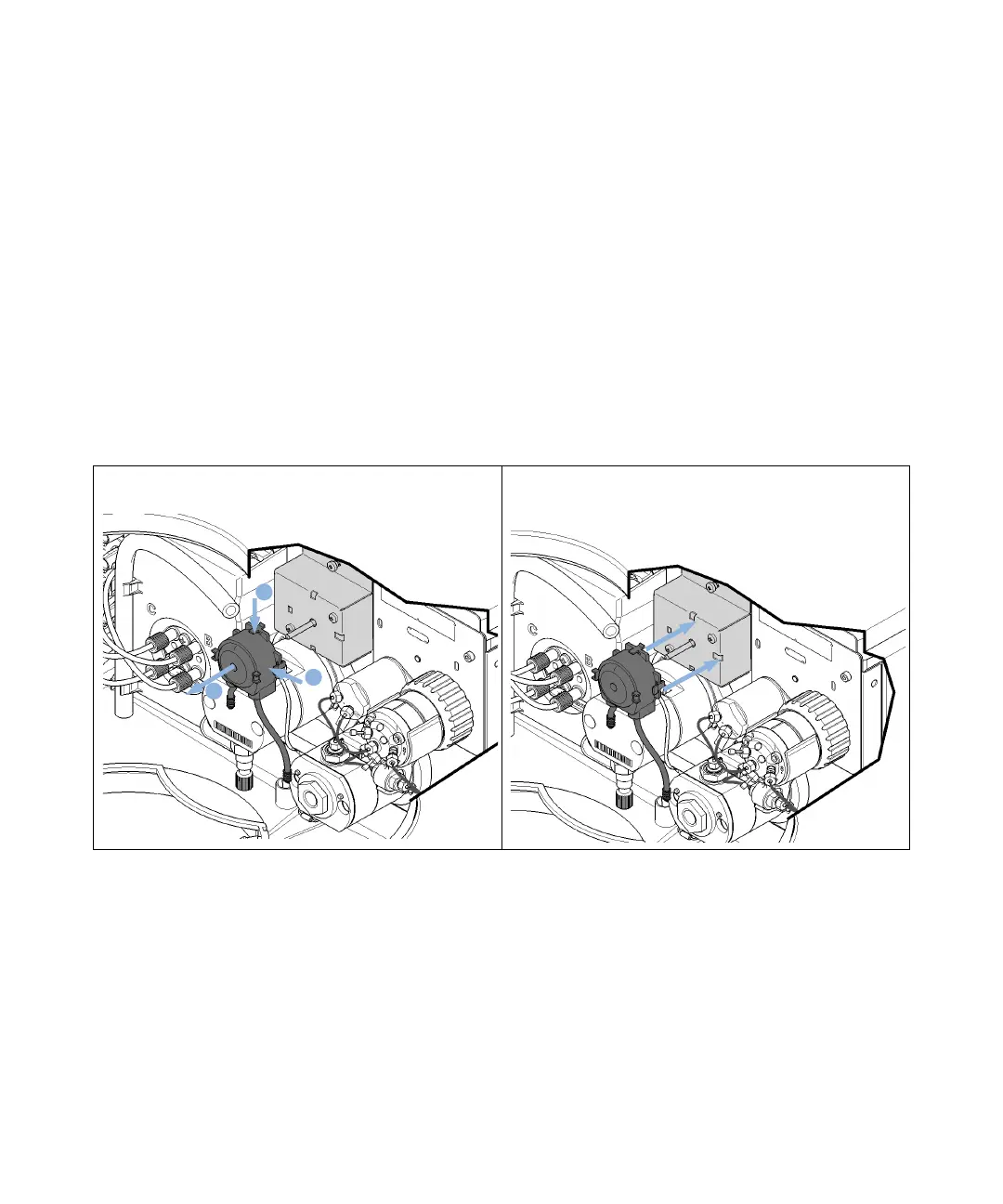

For removing the seal wash pump, press the clips (1) and
pull the pump to the front (2).
2
Insert the pump clips to the holes in the module housing.
