13 LAN Configuration
What You Have To Do First
What You Have To Do First
The module has an on-board LAN communication interface.
1 Note the MAC (Media Access Control) address for further reference. The
MAC or hardware address of the LAN interfaces is a world wide unique
identifier. No other network device will have the same hardware address.
The MAC address can be found on a label at the rear of the module
underneath the configuration switch (see Figure 35 on page 268).
Figure 34 MAC label
2 Connect the instrument's LAN interface (see Figure 35 on page 268) to
• the PC network card using a crossover network cable (point-to-point) or
• a hub or switch using a standard LAN cable.

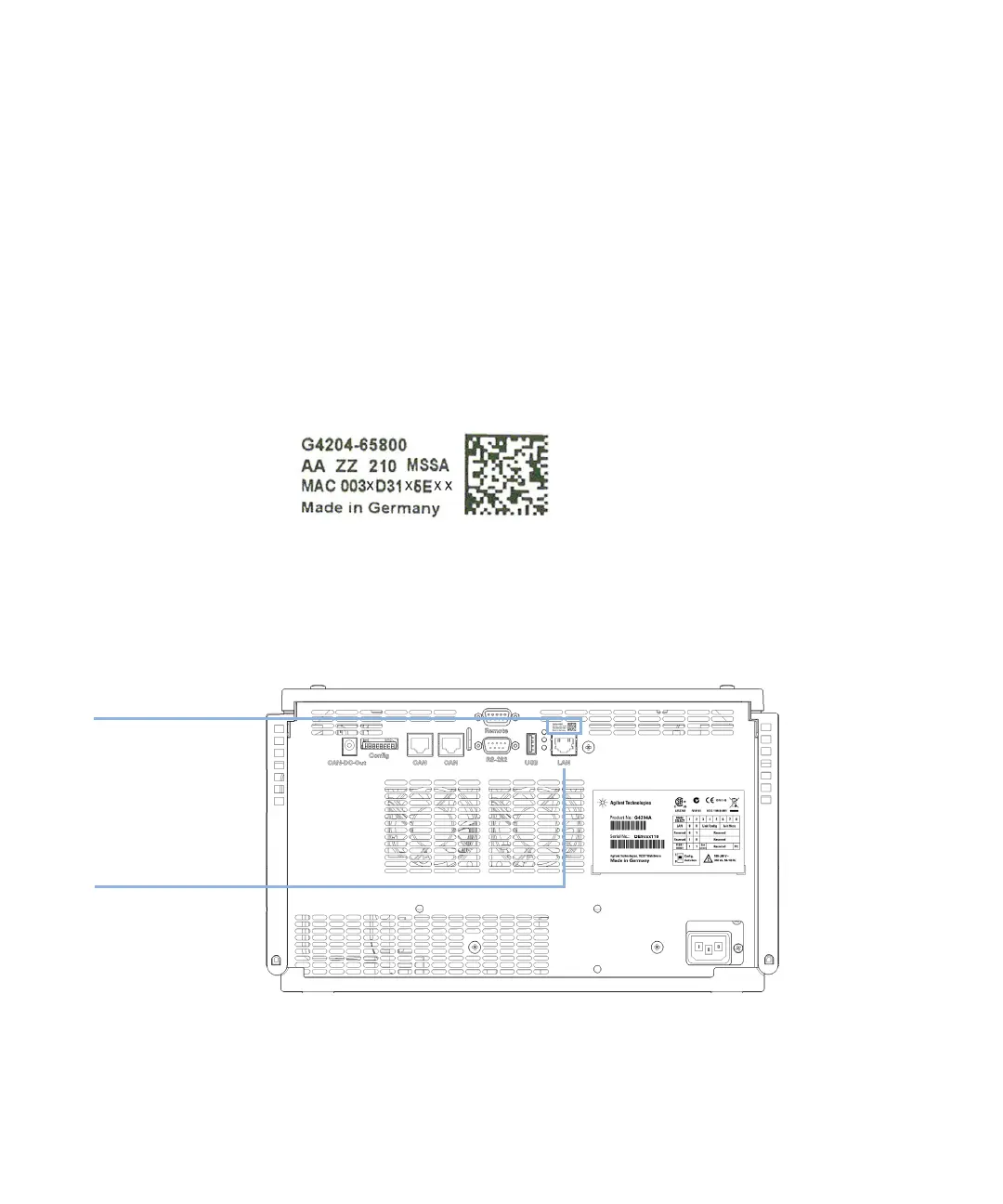

Figure 35 Location of LAN interfaces and MAC label
