Maintenance
Installing the Inline Filter
Installing the Inline Filter
For certain applications, Agilent recommends using an optional inline filter,
which can be installed to the Multi Purpose Valve.
Tools required p/n Description
8710-0510 Open-end wrench 1/4 — 5/16 inch
Parts required p/n Description
G7104-68000 Inline Filter Upgrade Kit
The kit includes:
5067-5407 Inline Filter Assembly
5067-4748 Capillary ST, 0.17 mm x 90 mm
G4204-40000 Clamp for In-Line Filter
Preparations Turn the pump off.
1
Remove the capillary between ports 5 and 8 from the
Multi Purpose Valve.
2

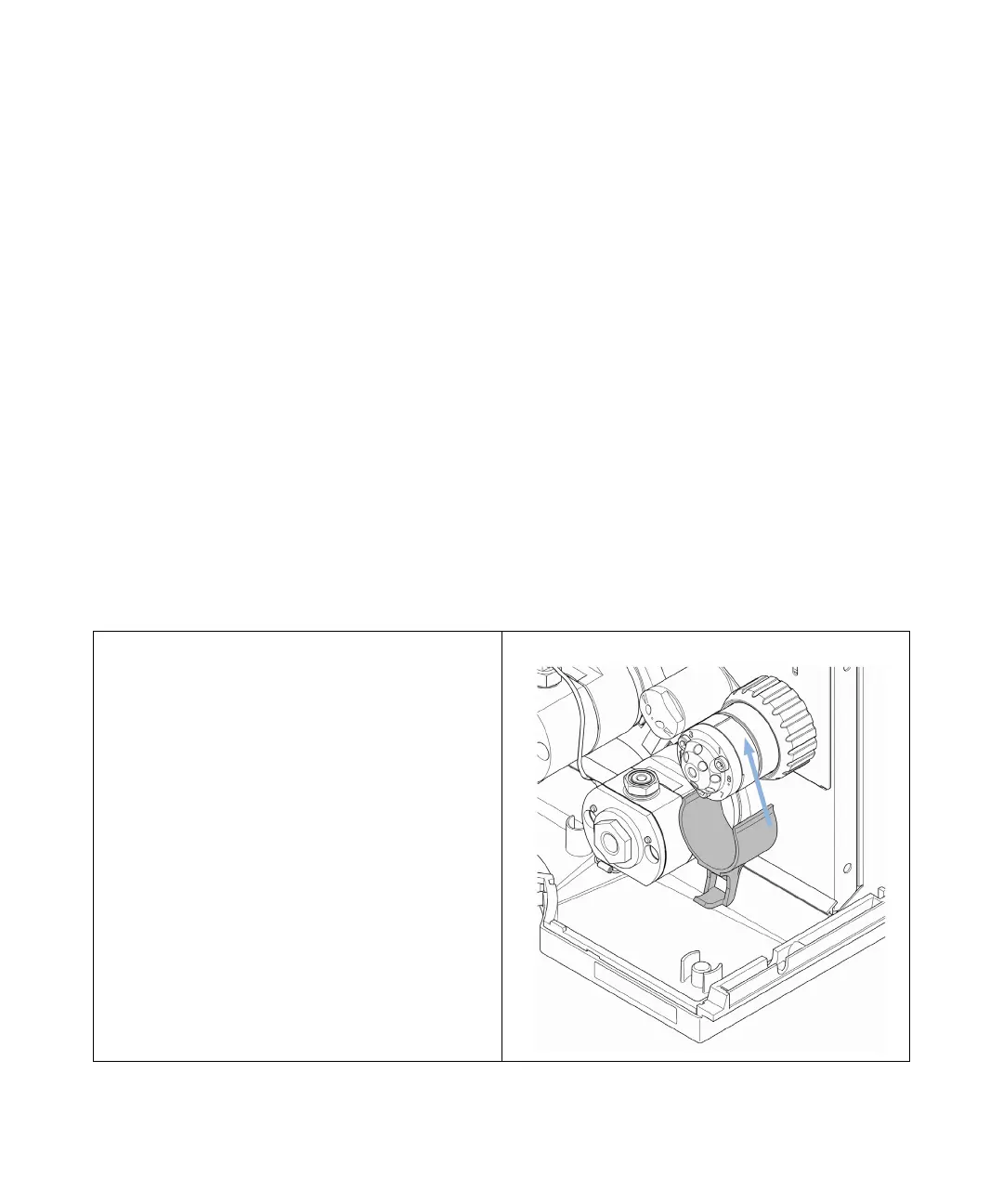

Clip the inline filter clamp to the Multi Purpose Valve.
To Next Page
