Maintenance
9

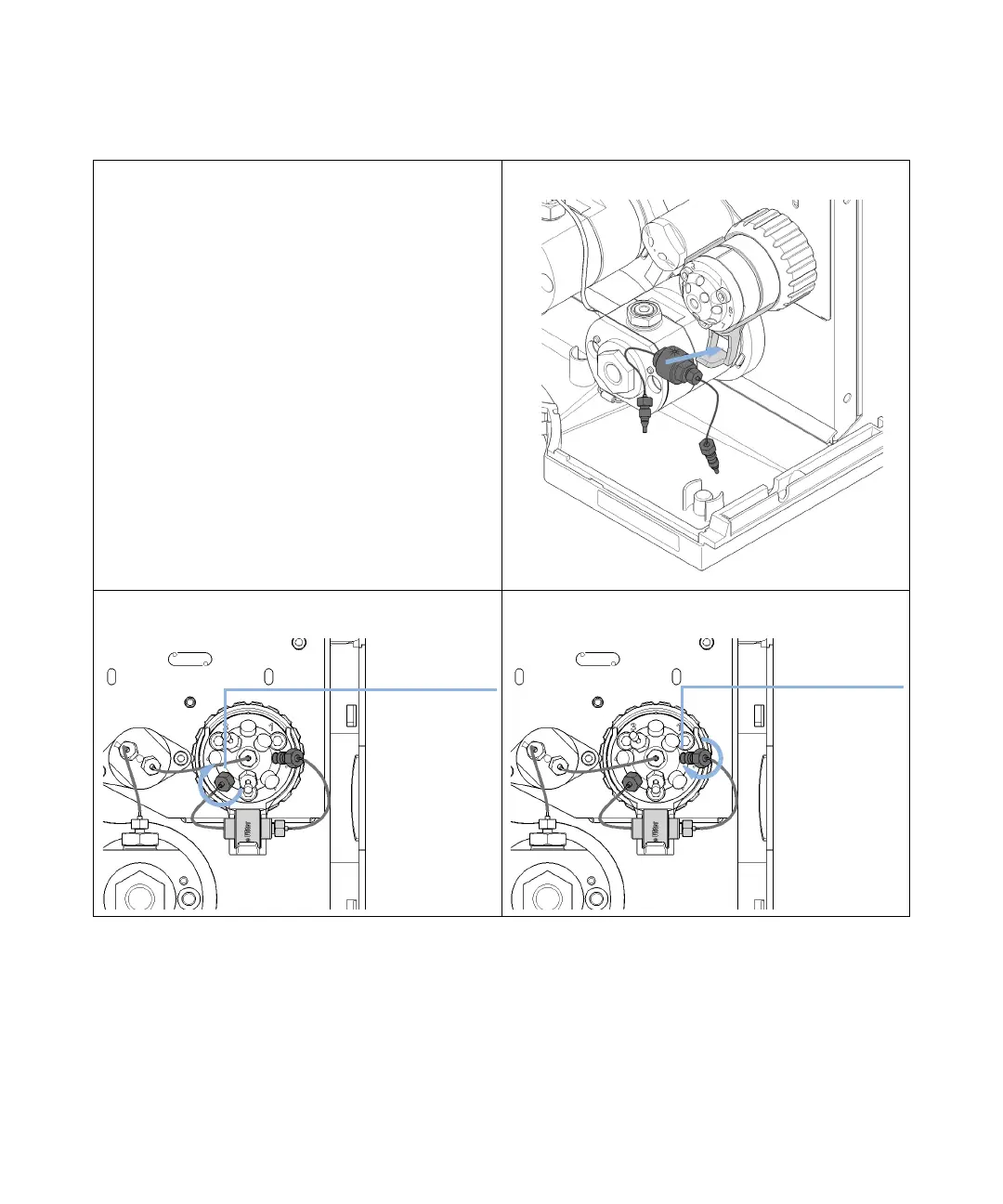

Installing the Inline Filter
3
Connect the 90 mm capillary (part of the upgrade kit) to
the filter outlet.
4 Fix the inline filter to the clamp.
5 Install the integrated capillary of the inline filter to port 5
of the Multi Purpose Valve.
6 Install the removable capillary of the inline filter to port 8
of the Multi Purpose Valve.
