Parts and Materials
Flow Connections
Flow Connections

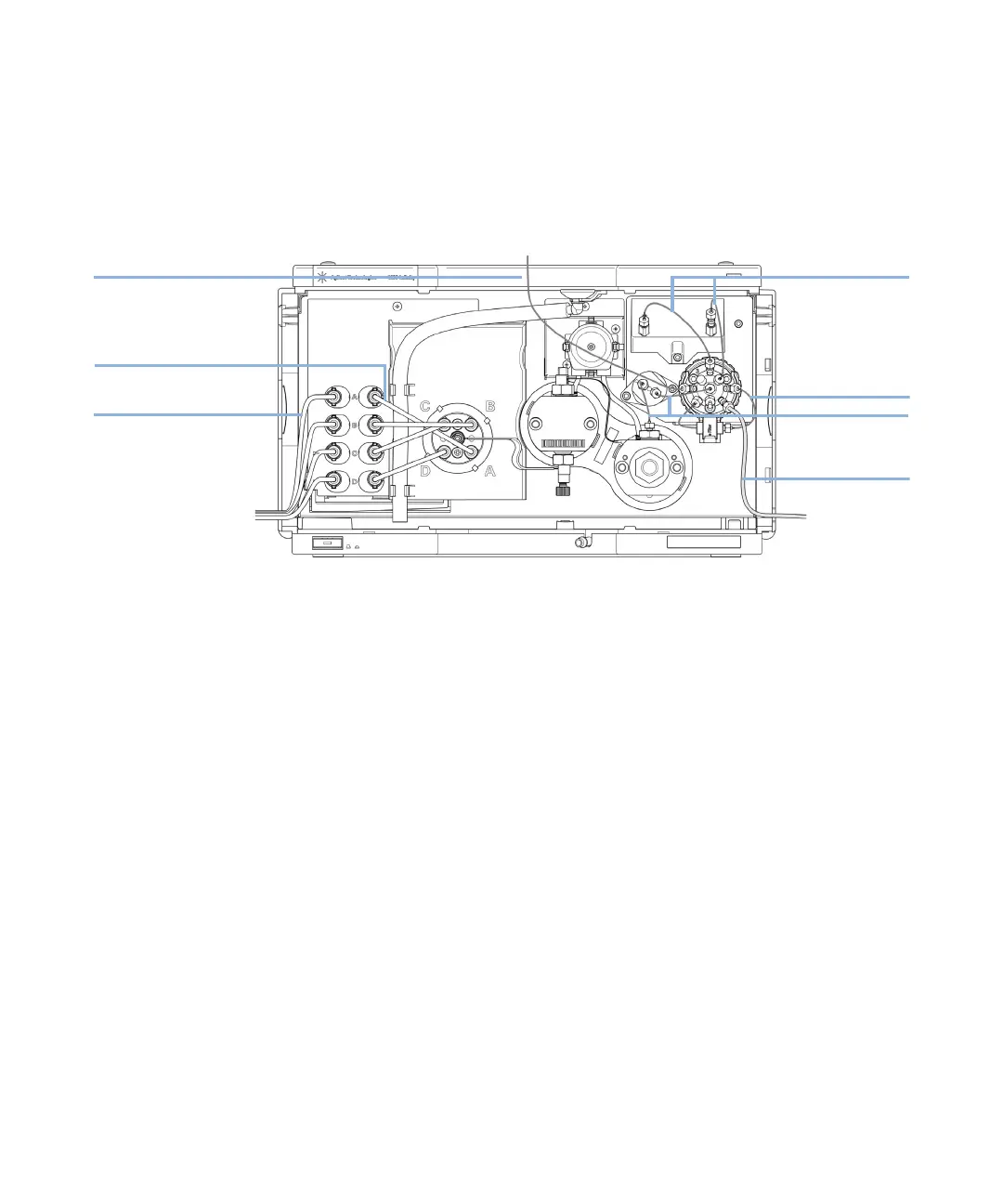

Figure 22 Flow connections of the pump
Item p/n Description
1 G4220-60007 Bottle Head Assembly
2 G4220-60035 Tubing kit 140 mm, 2/pk
degasser to MCGV
3 5067-4657 Capillary ST, 0.17 mm x 300 mm
pump to autosampler
4 5067-5416 Capillary ST 0.17 x 120 mm, SLV/SV
for Jet Weaver
5 5067-4748 Capillary ST, 0.17 mm x 90 mm
Multi Purpose Valve to inline filter
6 5067-4656 Capillary ST, 0.25 mm x 80 mm
pressure sensor to outlet filter and Multi Purpose Valve
7 5067-4755 Flexible Waste Tube, 5 m
G4220-68070 Ultra Clean Tubing Kit
(includes bottle head assemblies and tubing connections within the
pump)
G4220-60070 Tubing Kit 140 mm - Ultra Clean Tubing
(tubes from SSV to shutoff valve or degassing unit to MCGV)
G4220-60017 Bottle Head Assembly Ultra Clean Tubing
(bottle heads and tubing to shutoff panel / degasser)
