Pump Heads
Pump Head Assembly Parts

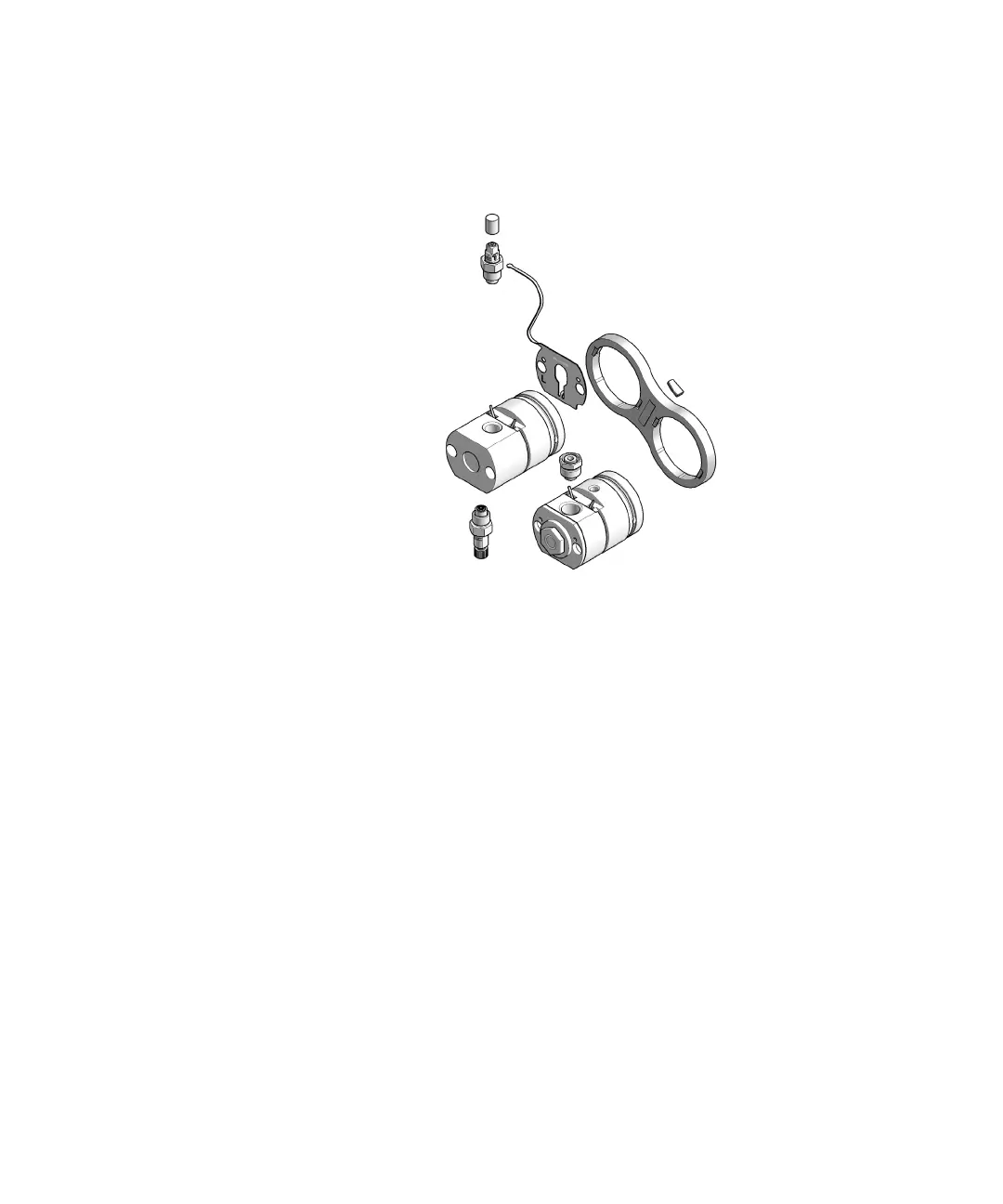

Figure 24 Pump head assembly parts
Long Life Pump Head Quat (G4204-60350)
Item p/n Description
1 G4220-60660 Secondary Pump Head Assembly Pendulum
2 G4220-60661 Primary Pump Head Assembly Pendulum
3 G4204-60022 Inlet Valve Quaternary Pump/Flexible Pump
4 G4220-60028 Outlet valve
(primary pump head)
G4220-20020 Internal gold seal for Outlet Valve
(not shown)
5 5042-9966 Cap Outlet Valve
6 G1312-60001 Adapter
7 G4220-81013 Heat Exchanger
8 G4220-40001 Link Plate
9 0960-2971 RF Transponder









