1290 Infinity Quaternary Pump User Manual 175
Maintenance
9
Remove the Pump Head Assembly
8

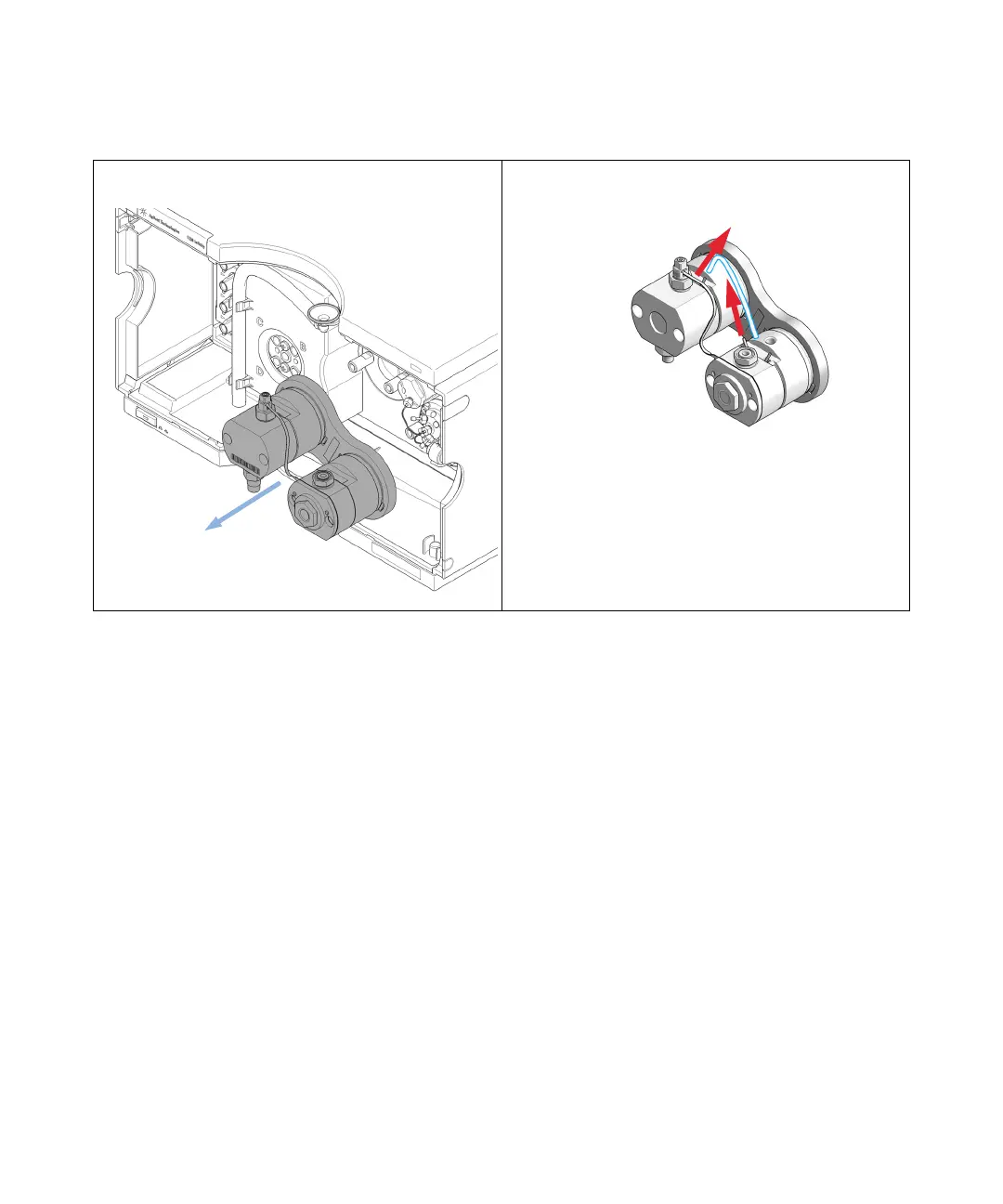

Remove the complete pump head assembly by holding
both heads and pulling it to the front.
9 Remove the seal wash tubing interconnecting the two
pump heads.
