1290 Infinity Quaternary Pump User Manual 183
Maintenance
9
Pump Head Maintenance (Tool Free)
3

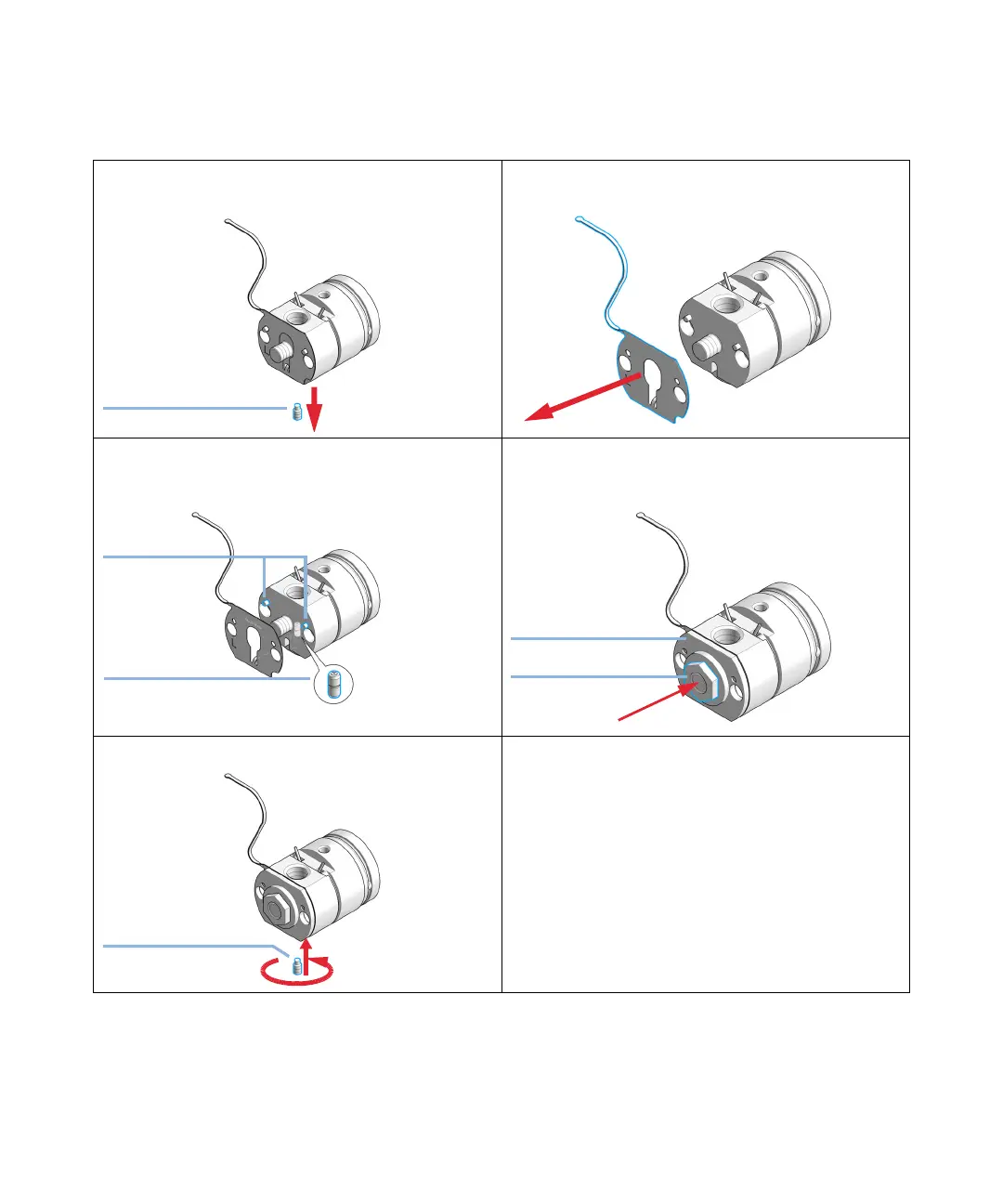

Remove the screw at the bottom of the pump head. Do
not drop the golden spacer fitting.
4 Lift out the heat exchanger.
5 If removed, first insert the spacer fitting. Then insert the
new heat exchanger to the opening in the pump head
and lift it over the pins.
6 Use the 19 mm screw for fixing the front plate.
7 Insert and fix the screw.
6FUHZ
6SDFHUILWWLQJ
3LQV
)URQWSODWH
6FUHZ
6FUHZ
1P
DSSUR[
