The RS-232C is designed as DCE (data communication equipment) with a
9-pin male SUB-D type connector. The pins are defined as:

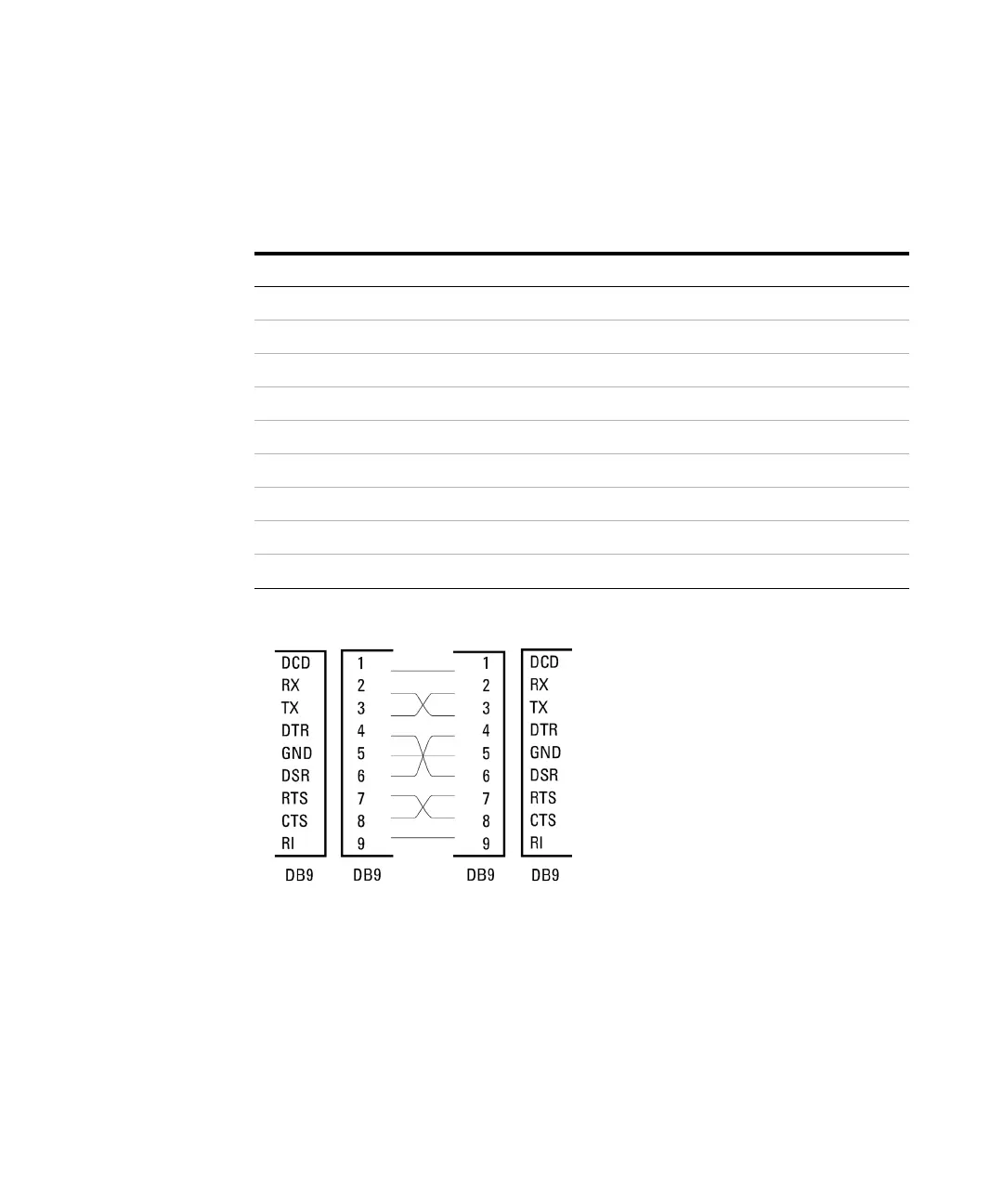

Figure 32 RS-232 Cable
Analog Signal Output
The analog signal output can be distributed to a recording device. For details
refer to the description of the module’s main board.
Tab le 9 RS-232C Connection Table
Pin Direction Function
1In DCD
2In RxD
3Out TxD
4Out DTR
5Ground
6In DSR
7Out RTS
8In CTS
9In RI
,QVWUXPHQW
3&
0DOH )HPDOH )HPDOH 0DOH
