262
Introduction to the Control Module
Screens available from the Records screen

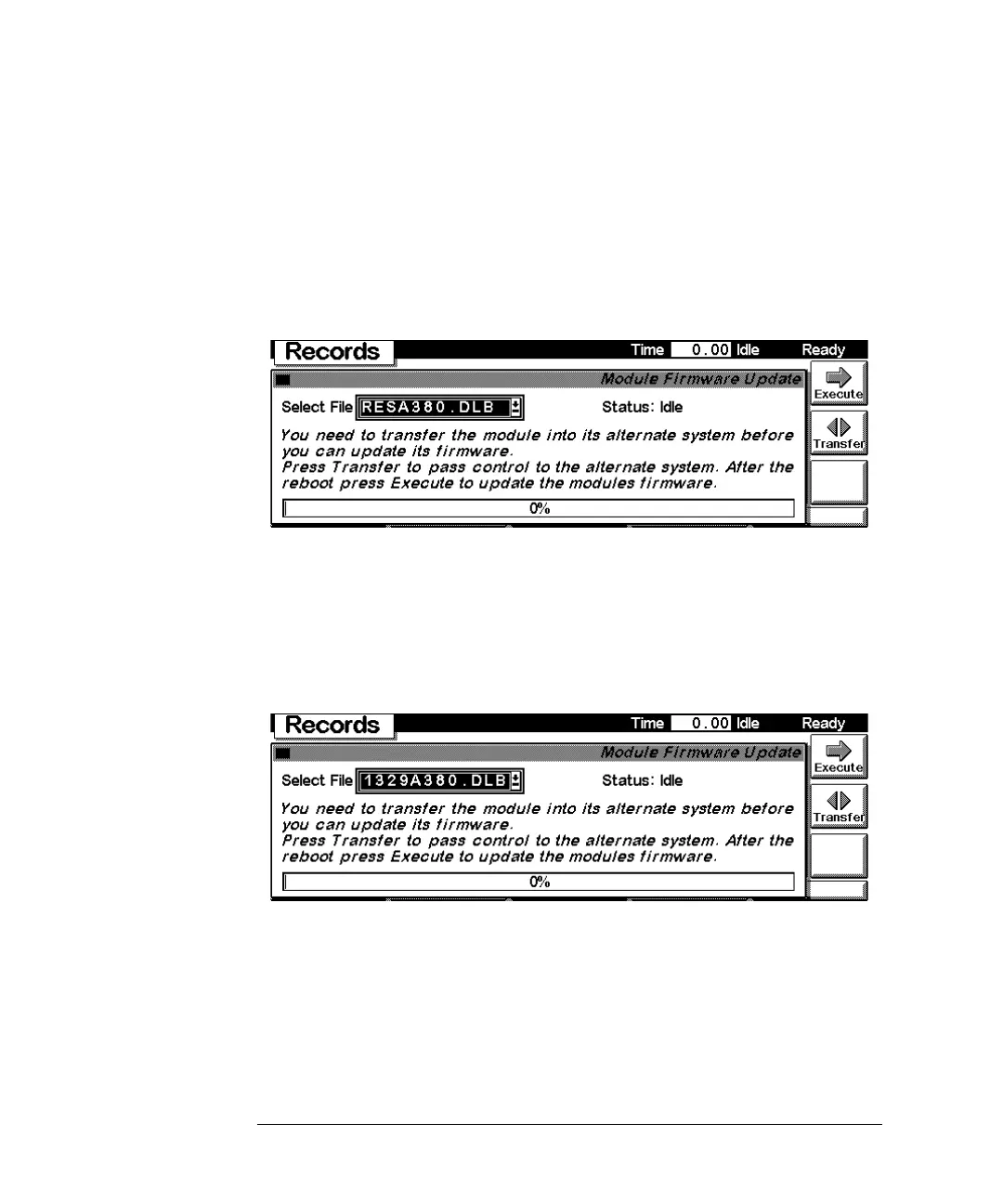

Firmware Update Use the Esc key to receive Views on the F5 key. Choose System from the
pull-down menu. Use the F3 key (Records) to select the ALS. Use the F5 key
(FW Update) to enter the Update section. If you want to update the resident
firmware (together with specific main firmware revisions), select the a file
from the PCMCIA card (RESnnnn.DLB) and press execute. If you want to
update the main firmware, press F7 key (Tra nsfer ) to turn the module into
the resident mode (LED on module should blink yellow).
Use the Esc key to receive Views on the F5 key. Choose System from the
pull-down menu. Use the F3 key (Records) to select the ALS. Use the F5 key
(FW Update) to enter the Update section. Select the a file from the PCMCIA
card (1313nnnn.DLB or 1329nnnn.DLB) and press execute. When the update
has finished the update, press F7 key (Transfer) to return the module into
the normal mode (LED on module should stays yellow).
