Agilent Technologies Medalist i3070 5i Series - Page 43

Test Development
i3070 Series 5i Help 3-17

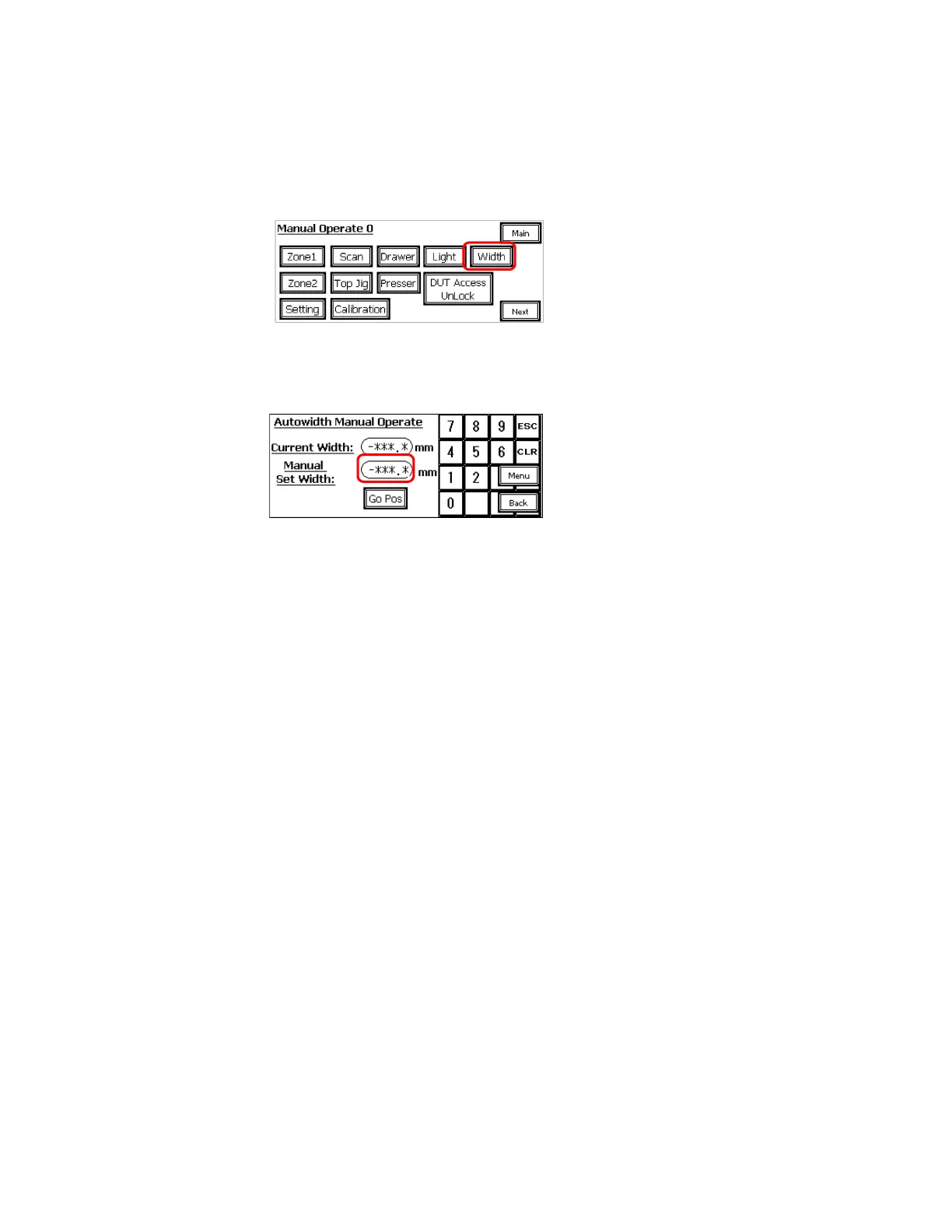

Using the Touch Panel
1 Select Maintenance mode on the LCD touch panel and press Width.
2 Press Next.
3 Enter the board width in mm and then press Go Pos to move the
conveyor rail to the specified width.
