Test Development
i3070 Series 5i Help 3-19

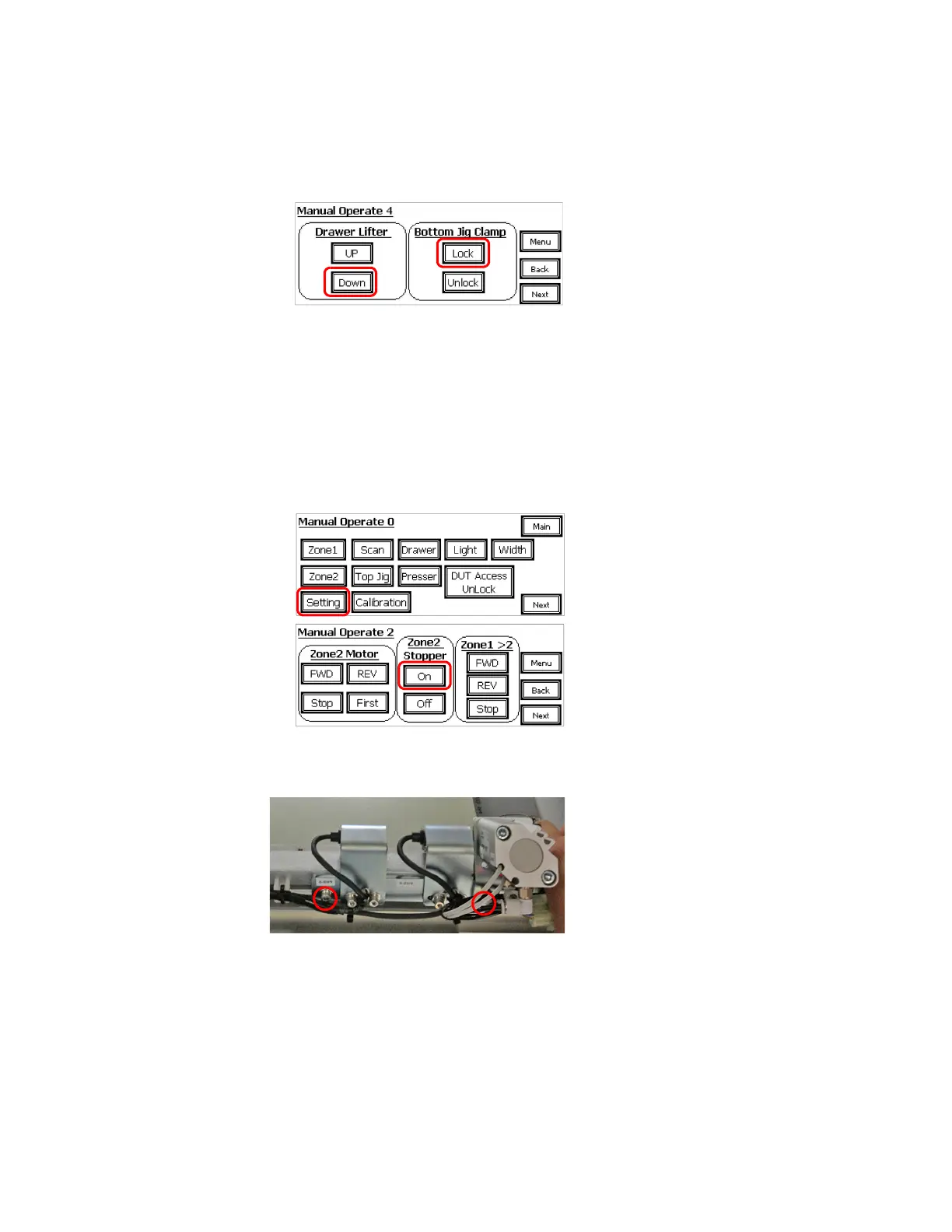

5 On the LCD touch panel, press Down to move the drawer down, then
press Lock to lock the bottom fixture.
Adjust Board Stopper
The board stopper ensures that the board is stopped at the correct
position for testing. Adjust the board stopper using a production board.
1 Turn the Zone 2 board stopper on.
a On the Maintenance menu select Zone 2 to go to page 2.
b Select On for the Zone 2 stopper.
2 Place the production board on the fixture support plate.
3 Loosen two screws on the board stopper bracket.
4 Push the fixed rail down as you move the board stopper to the edge of
the board.
5 Tighten the screws on the bracket.
6 Place the board on the conveyor and skate it to the board stopper.
