6-18 i3070 Series 5i Help
Troubleshooting

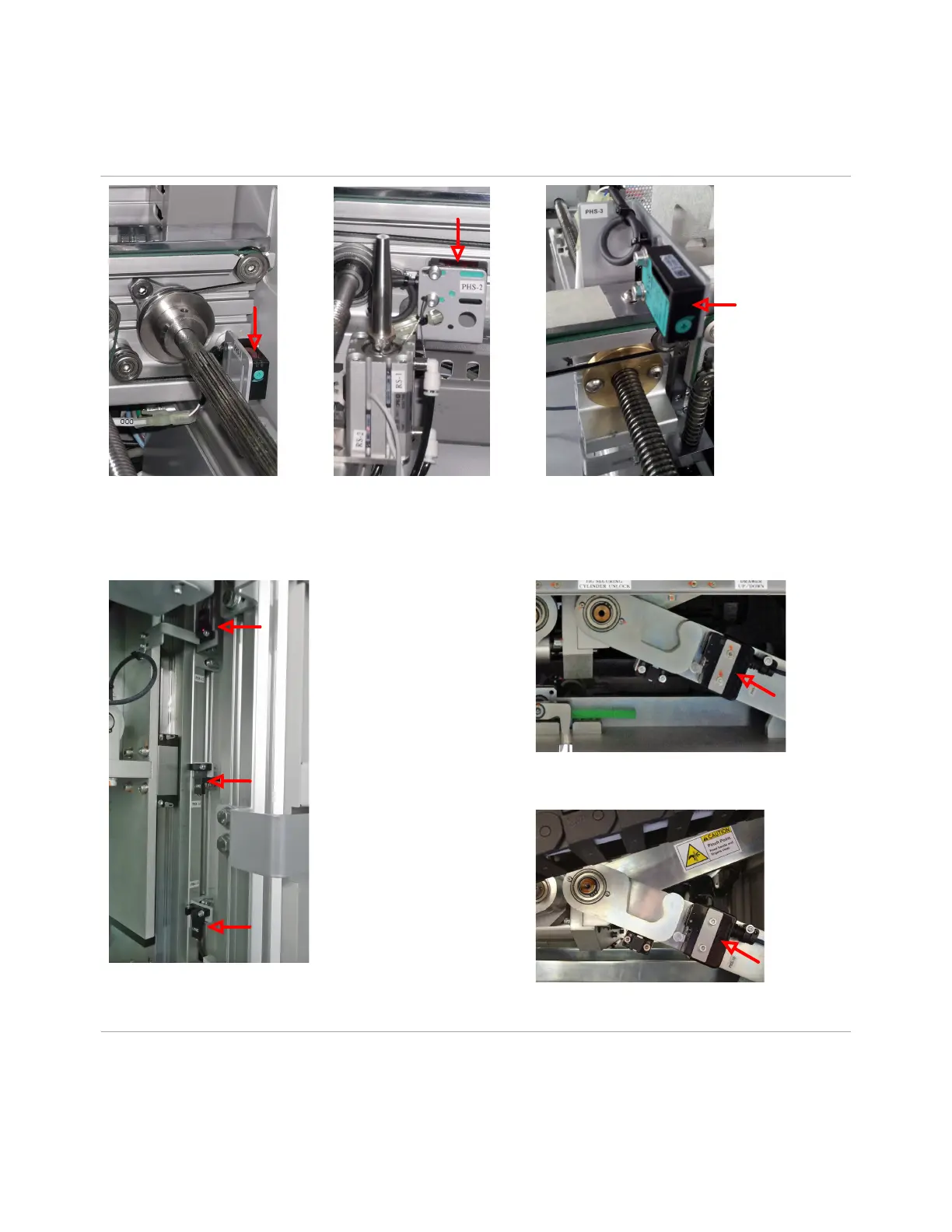

Figure 6-7 Zone 1 and Press Sensors
Zone 1 Inlet Sensor
PHS-1
Zone 1 Stopper Sensor
PHS-2
Zone 1 Exit Sensor
PHS-3
Rear Safety Hook Detect Sensor
PHS-16
Front Safety Hook Detect Sensor
PHS-17
Upper Limit Sensor
PHS-12
Home Sensor
PHS-14
Lower Limit Sensor
PHS-13
Presser
Presser
Presser
