MPLS Transport Profile (MPLS-TP)
Page 32 7210 SAS M, T, X, R6, Mxp MPLS Configura-
tion Guide

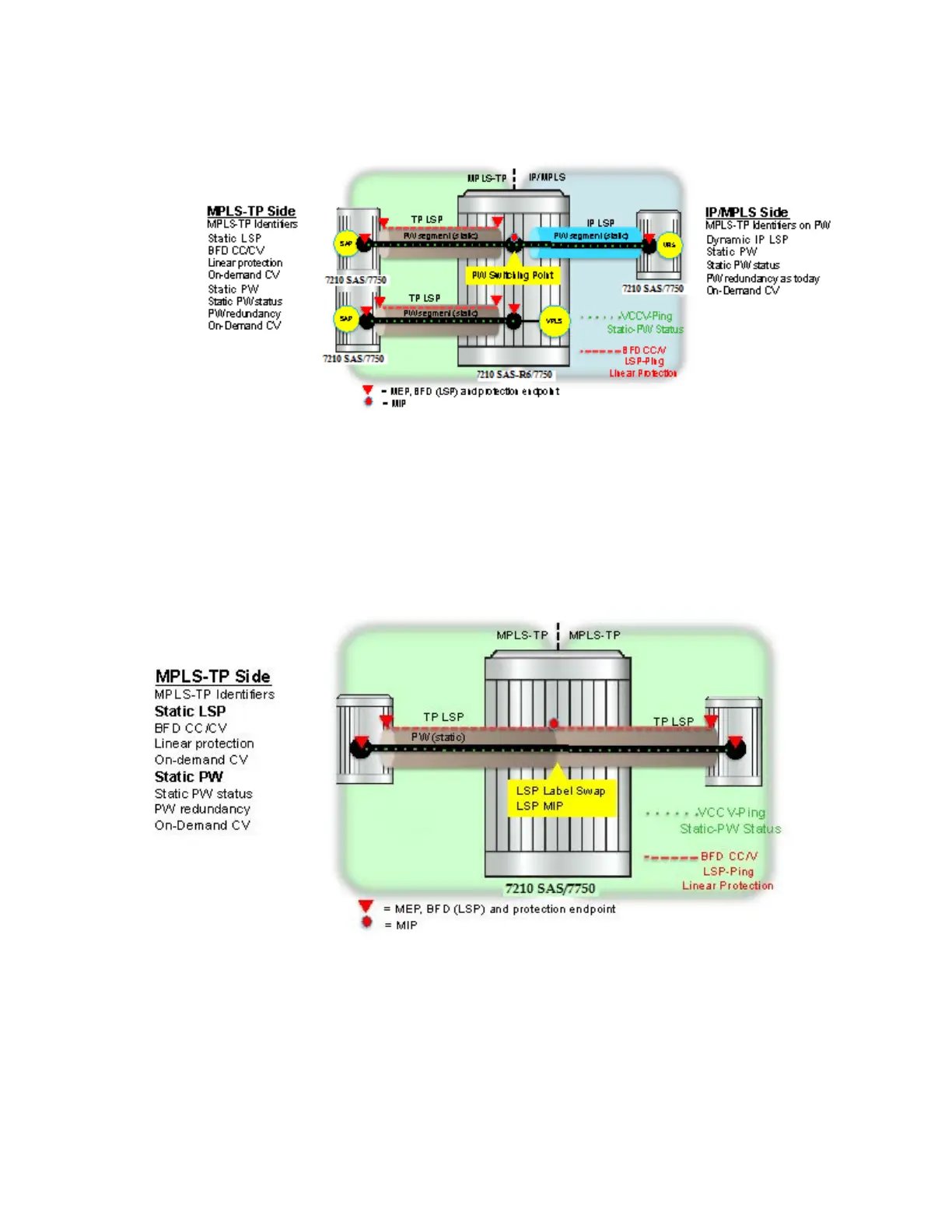

Figure 7: MPLS-TP Provider Edge and Gateway, spoke-SDP Termination on VPLS
Note: 7210 SAS-R6 does not support spoke-SDP termination on IES and VPRN services. But,
7210 SAS-R6 nodes can be used as T-PE nodes (LER nodes) which originates the Epipe service or
as S-PE nodes acting as Stitching point for MPLS-TP PWs. 7210 SAS-R6 also supports MPLS-TP
Epipe spoke-sdp termination on VPLS Service.
Figure 8: MPLS-TP LSR
