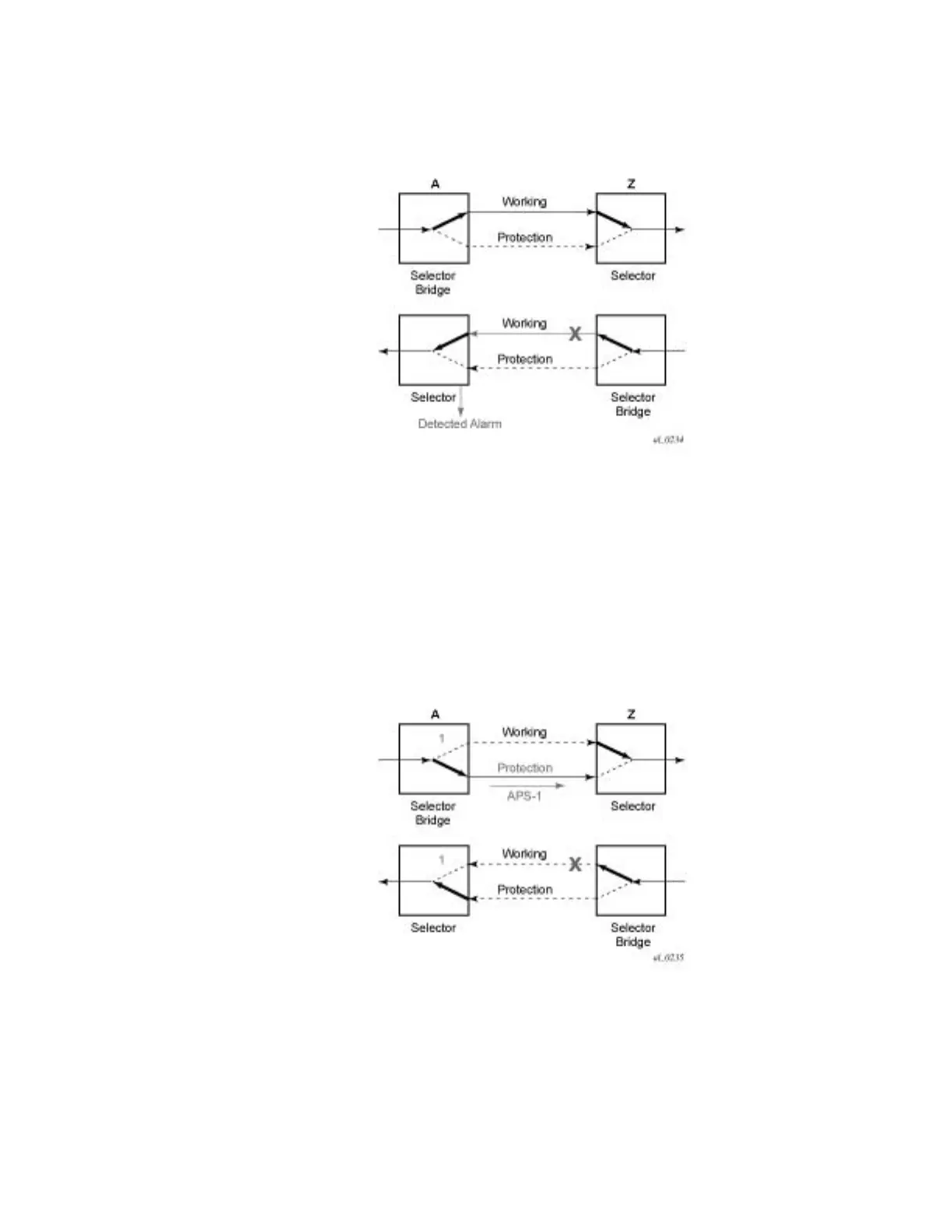

Figure 17: Failed Condition
In normal condition, user data packets are sent on the working path on both directions, from A to Z
and Z to A.
A defect in the direction of transmission from node Z to node A impacts the working connection
Z-to-A, and initiates the detection of a defect at the node A.
Figure 18: Failed Condition - Switching at A
